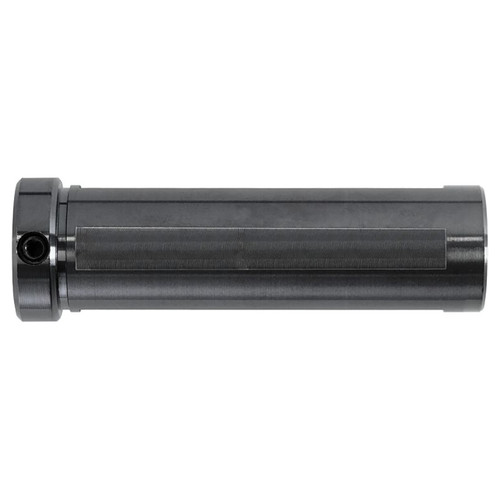

This offering of Micro 100 Standard Length Straight Tool Holders feature products with a headless design, allowing for maximum versatility in any swiss, standard lathe, or multi-function lathe.
Features:- Headless tool holder engineered for maximum versatility in any swiss, standard lathe, or multi-function lathe
- Tool holder optimized for use with Micro 100 standard shank tools in turning applications
- 4 alignment flats allow for multiple tool engagements and holder orientations
- Heat treated and black oxide coated for durability and corrosion resistance
- Tool holder includes: hex wrench, locating/locking screw
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | THS-3-630 |
| Shank Diameter (mm) | 16.000mm |
| Overall Length (Inch) | 2.75" |
| Tool Holder Bore Diameter (Inch) | 0.1875" |
| Metric | Y |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Finish/Coating:
Uncoated
Overall Length (Decimal Inch):
2.7500"
