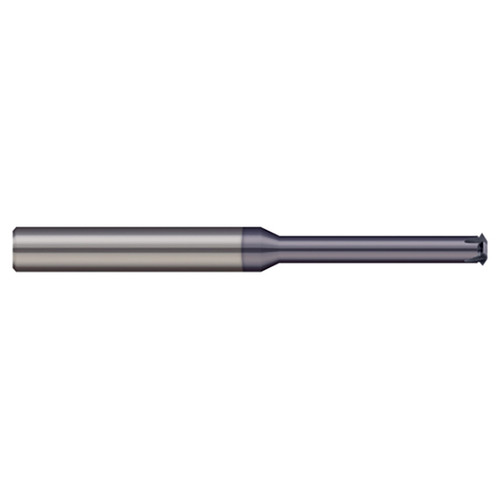

Micro 100 TM-100-8X | 32-64 TPI 0.0500" Neck Diameter x 1/2" Neck Length AlTiN Coated Carbide Thread Mill

$65.70
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Threads Per Inch:
32
Maximum Threads Per Inch:
64
Thread Type:
Internal/External
Material:
Carbide
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
2
Cutter Diameter (Decimal Inch):
0.1000"
Neck Diameter (Decimal Inch):
0.0500"
Neck Length (Inch):
1/2"
Neck Length (Decimal Inch):
0.500"
Finish/Coating:
AlTiN
Ships:
From Partner Facility
interval quantity:
1
SKU:
15020791
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Decimal Inch) 0.1000"
Coating AlTiN
Flutes 2
Length of Cut (Decimal Inch) 0.029"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Neck Diameter (Decimal Inch) 0.0500"
Neck Length (Inch) 1/2"
Neck Length (Decimal Inch) 0.500"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.50"
Thread Size 32-64
