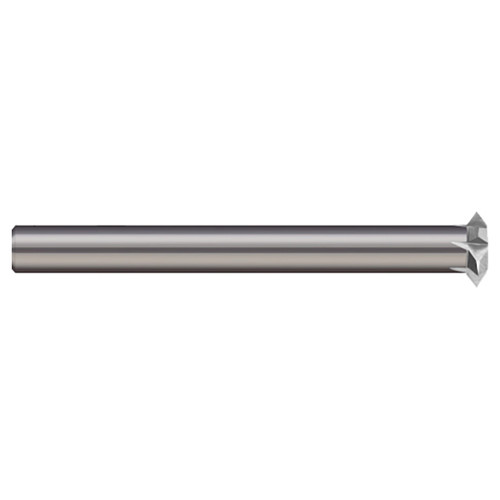

Micro 100 TM-500 | 11-32 TPI 0.2750" Neck Diameter x Neck Length Uncoated Carbide Thread Mill

$117.90
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Threads Per Inch:
11
Maximum Threads Per Inch:
32
Thread Type:
Internal/External
Material:
Carbide
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
5
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Neck Diameter (Decimal Inch):
0.2750"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
interval quantity:
1
SKU:
10026726
UPC:
Weight:
0.90 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 1/2"
Cutter Diameter (Decimal Inch) 0.5000"
Coating Uncoated
Flutes 5
Length of Cut (Inch) 1/8"
Length of Cut (Decimal Inch) 0.125"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Flat Width (Decimal Inch) 0.002"
Neck Diameter (Decimal Inch) 0.2750"
Overall Length (Decimal Inch) 2.61"
Thread Size 11-32

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
