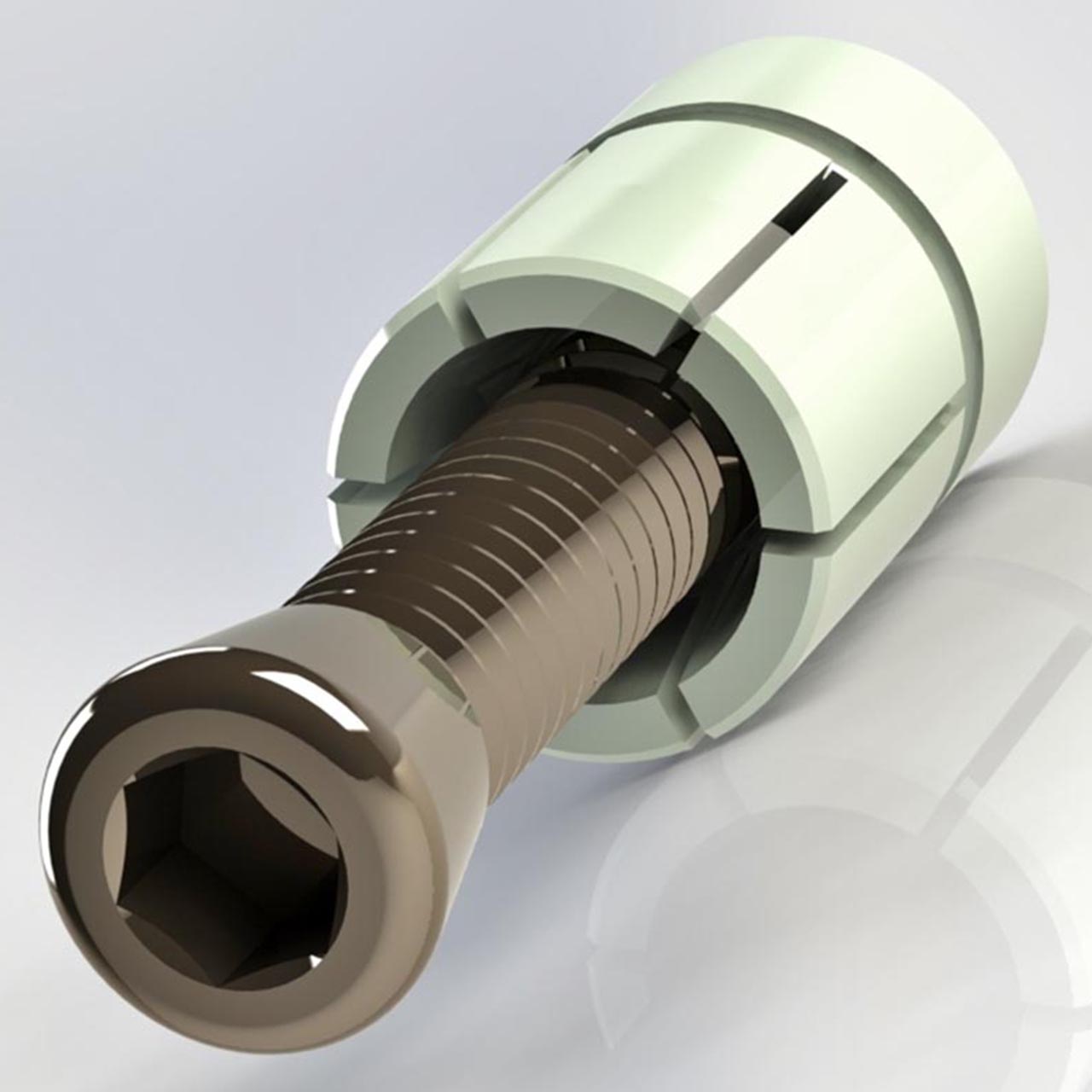

Mitee-Bite 38730 | M3 Screw Size x 2.8 N.m Max Torque x 1868 N Holding Force Modular XYZ Xpansion Pin

Mitee-Bite Products releases the new Modular XYZ Xpansion Pins for Tombstone, Grid Plate and Fixture Plate applications. The unique, patent pending design provides accurate location, repeatability and high holding forces for securing parts on the inside diameter. The XYZ Pin provides "out of the way workholding" and accessibility to all work surfaces with absolutely no external clamping interference. The Threaded Pin is standard sizes of 1/2, 5/8, M12 and M16 for tombstones and grid plates. The Press Fit Pins are 1/4, 3/8, 1/2, 5/8, M6, M10, M12 and M16 diameters for custom applications. Both styles of the pins are manufactured from "heat treatable" 17-4PH stainless steel. The Press Fit Pins are now also 12L14 mild steel. The Pins expand up to 0.030" (0.7 mm) and the diameter can be machined for specific applications. The top of the Pins have a slight taper creating maximum line contact in bore and provides clearance during load/unload. Designed for quick set-ups on secondary operations, material coming off prep stations, water-jets or even applications outside of ymachining centers!.
