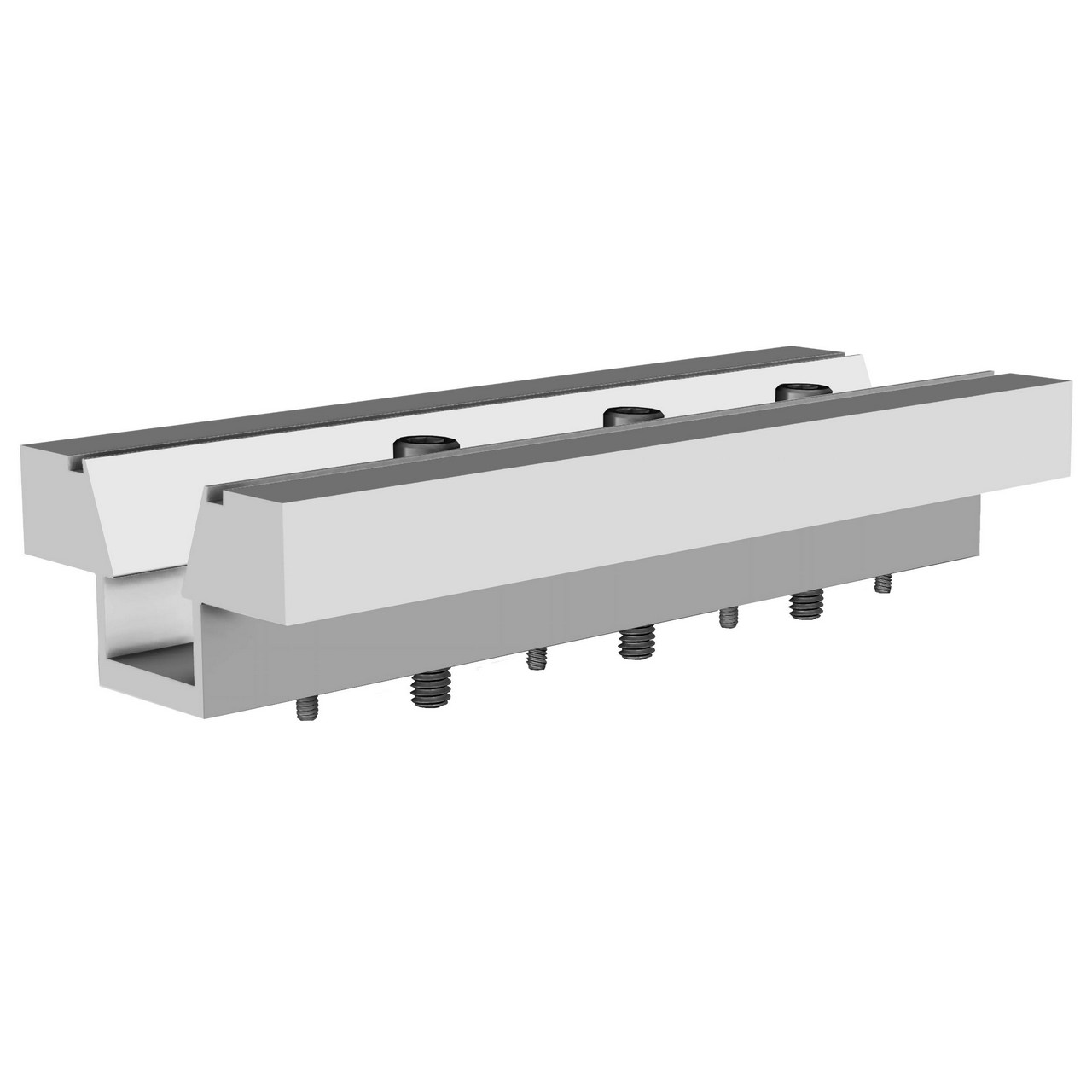

Mitee-Bite products introduces the long length Uniforce Clamp with machinable jaws. The long length clamping jaws give you greater versatility to machine the clamp to conform to the shape of yworkpiece, enabling you to fixture difficult applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7 1/2" (190 mm) long, 7075-T6 aluminum channel. One locking plate is reco mmended for each drive screw when machining the clamp to yspecifications (sold separately). These clamps are most popular sizes (see chart below). Custom clamps can be fabricated in different lengths to fit specific requirements. Channel and steel wedge are not drilled or plated.
Screw Size | M12 |
Maximum Torque | 38.40 Nm |
Holding Force | 15575 N |
