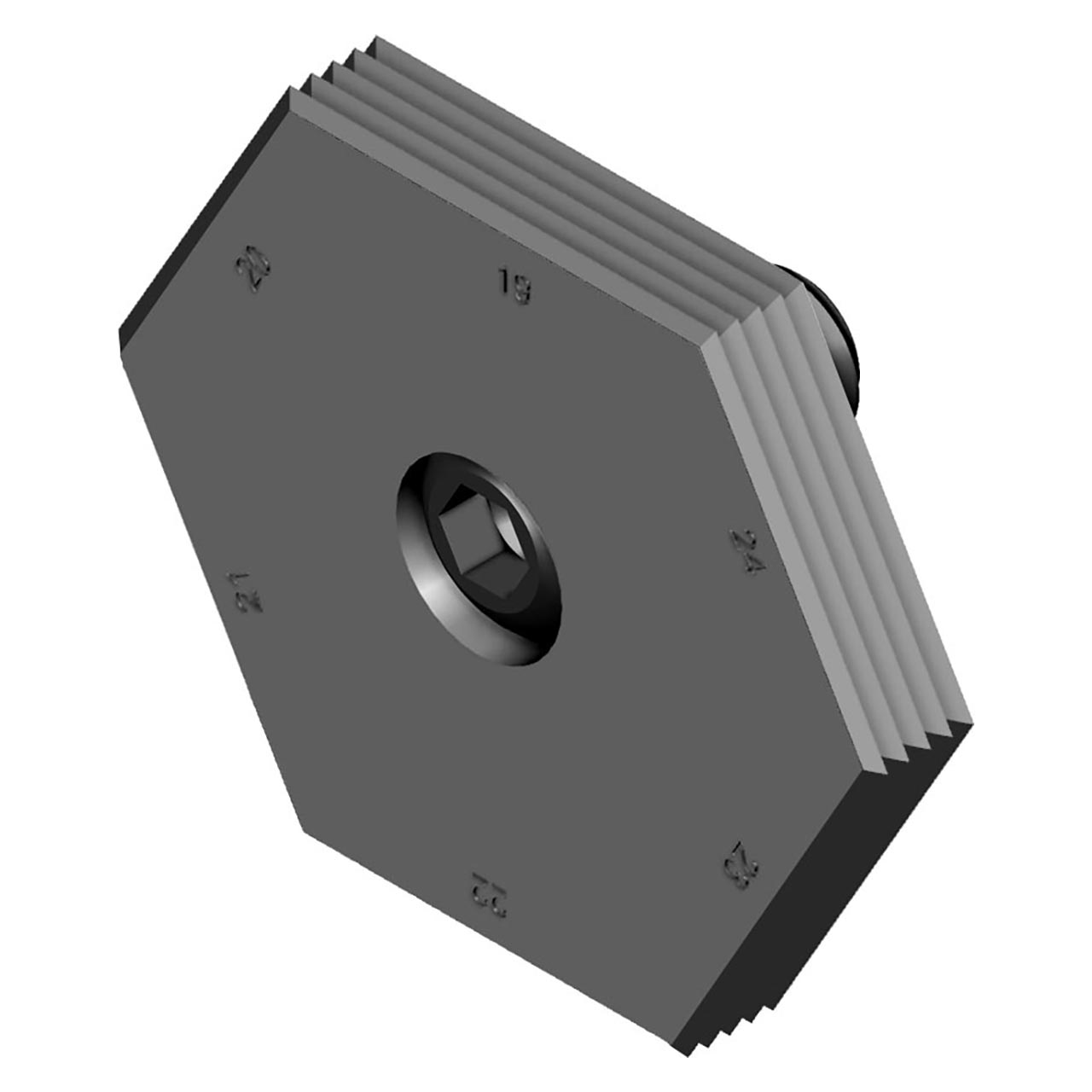

Mitee-Bite 95145 | M12 Screw Size x 88 N.m Max Torque x 17800 N Holding Force 19-24 Serrated Series-9 Clamp

$43.20
Ships:
From Manufacturer
Brand:
Mitee-Bite
Ships:
From Manufacturer
SKU:
50009071
UPC:
Weight:
0.66 LBS
Shipping:
Calculated at Checkout

This adjustable low profile, cam action clamp provides clamping of different size workpieces merely by rotating the clamp to one of its other edges. The clamps are .394 (10 mm) high and use a 1/2-13 (M12) cam screw. Each of the six clamping surfaces is a different distance from the centerline by .0394 (1 mm) as shown in the chart. Therefore, one Series-9 Clamp can hold parts that vary up to 0.1968 (5 mm) simply by rotating the clamp to a different clamping surface.

Features:

  • Serrated or smooth edges
  • Heat treated and plated
  • 4,000 lbs. (17800 N.m.) holding force
  • Simple, sturdy, high quality design and components

Product Specifications
Screw SizeM12
Maximum Torque88 Nm
Holding Force17800 N
