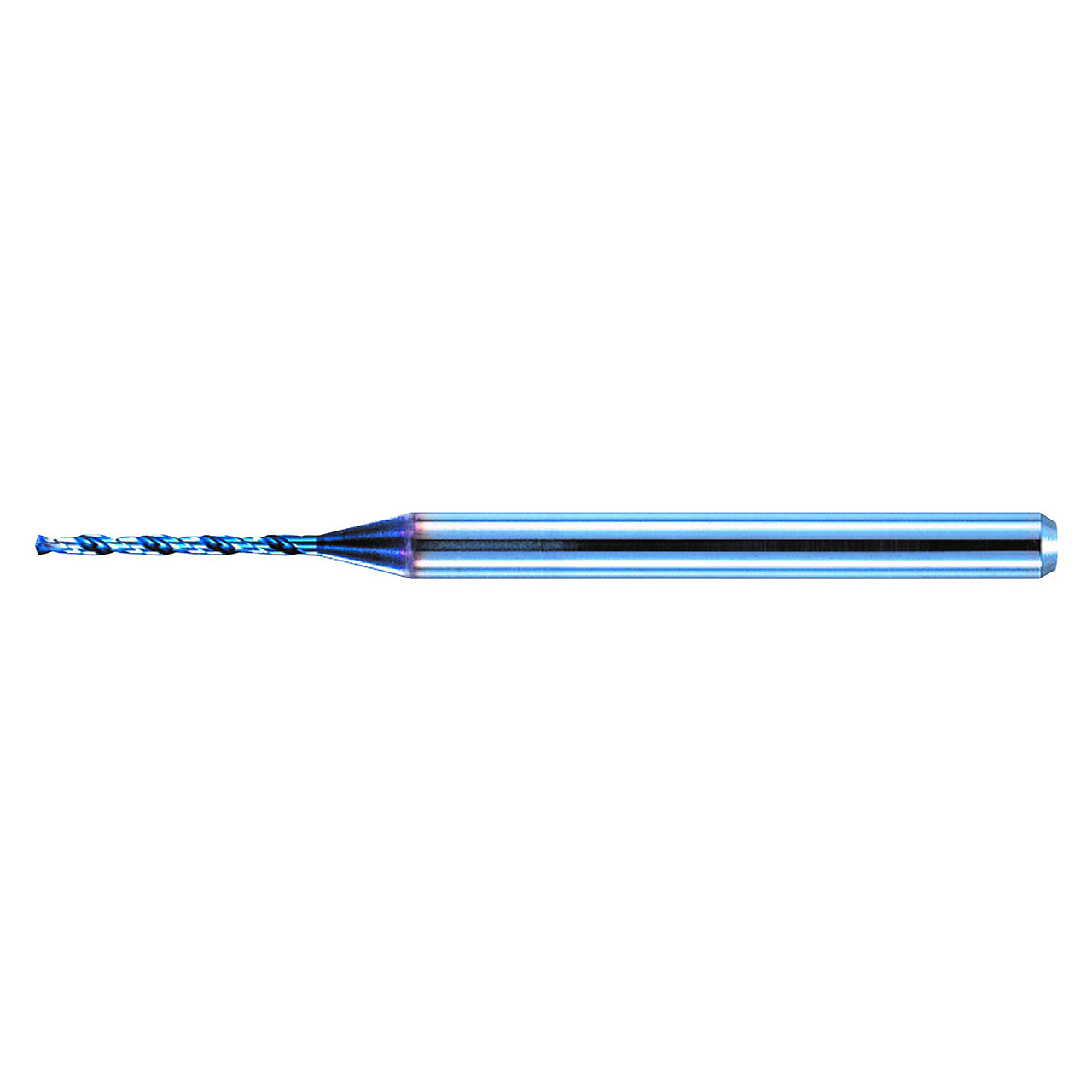

Nachi 0634208 | 0.40mm Diameter x 3.00mm Shank x 38.00mm OAL 2 Flute Aqua Coated Carbide Micro Drill Bit

$27.12
Brand:
Nachi
Drill Bit Size (Decimal Inch):
0.0157";Drill Bit Size (mm)=0.40mm"
Drill Point Angle:
140 Degree
Flute Length (Inch):
1/5";Flute Length (Decimal Inch)=0.1969""
Flute Length (mm):
5.00mm
Shank Diameter (Inch):
1/8";Shank Diameter (Decimal Inch)=0.1181""
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
1-1/2";Overall Length (Decimal Inch)=1.4960""
Overall Length (mm):
38.00mm
Finish/Coating:
Aqua
Coolant Through:
No
SKU:
10220201
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Nachi 0634208 | 0.40mm Diameter x 3.00mm Shank x 38.00mm OAL 2 Flute Aqua Coated Carbide Micro Drill Bit

Product Specifications
# Manufacturer Number0634208
Diameter (mm)0.40mm
Shank Size (mm)3.00mm
Flute Length (mm)5.00mm
Overall Length (mm)38.00mm
Drill Point Angle140 Degree
Number of Flute2
MaterialCarbide
Finish / CoatingAqua
Coolant ThroughNo
Cutting DirectionRight
Flute TypeConventional Spiral
Shank TypeEndmill Type Shank

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Nachi
Drill Bit Size (Decimal Inch):
0.0157";Drill Bit Size (mm)=0.40mm"
Drill Point Angle:
140 Degree
Flute Length (Inch):
1/5";Flute Length (Decimal Inch)=0.1969""
Flute Length (mm):
5.00mm
Shank Diameter (Inch):
1/8";Shank Diameter (Decimal Inch)=0.1181""
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
1-1/2";Overall Length (Decimal Inch)=1.4960""
Overall Length (mm):
38.00mm
Finish/Coating:
Aqua
Coolant Through:
No
