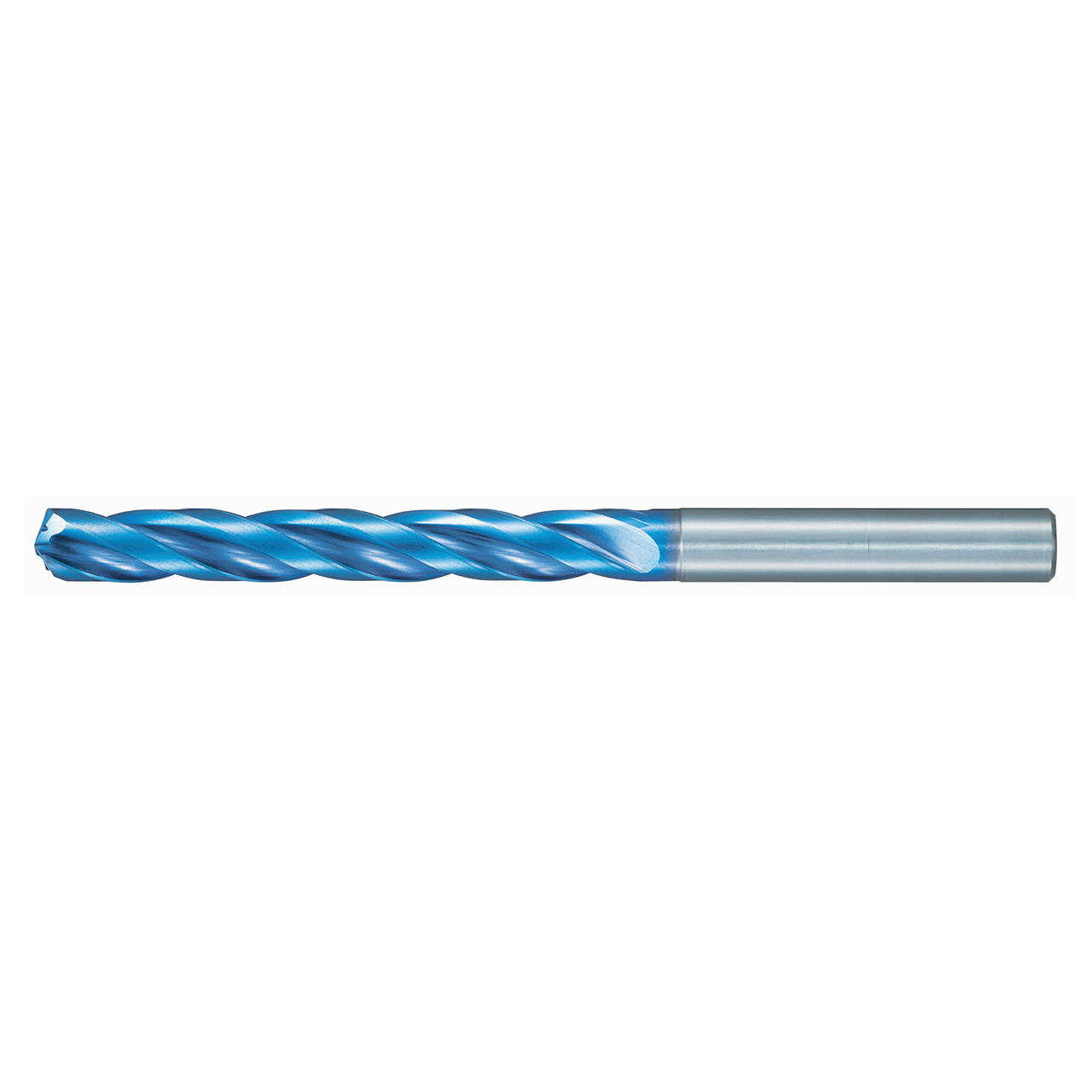

Product Specifications
| # Manufacturer Number | 0724597 |
| Diameter (mm) | 15.60mm |
| Shank Size (mm) | 16.00mm |
| Flute Length (mm) | 128.00mm |
| Overall Length (mm) | 194.00mm |
| Drill Point Angle | 140 Degree |
| Number of Flute | 3 |
| Material | Solid Carbide |
| Finish / Coating | Aqua EX |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
3/5"
Drill Bit Size (Decimal Inch):
0.6142"""
Drill Bit Size (mm):
15.60mm
Flute Length (Inch):
5"
Flute Length (Decimal Inch):
5.0394"""
Flute Length (mm):
128.00mm
Overall Length (Inch):
7-2/3"
Overall Length (Decimal Inch):
7.6378"""
Overall Length (mm):
194.00mm
Drill Point Angle:
140 Degree
Finish/Coating:
Aqua EX
Material:
Solid Carbide
Coolant Through:
Yes
interval quantity:
1
