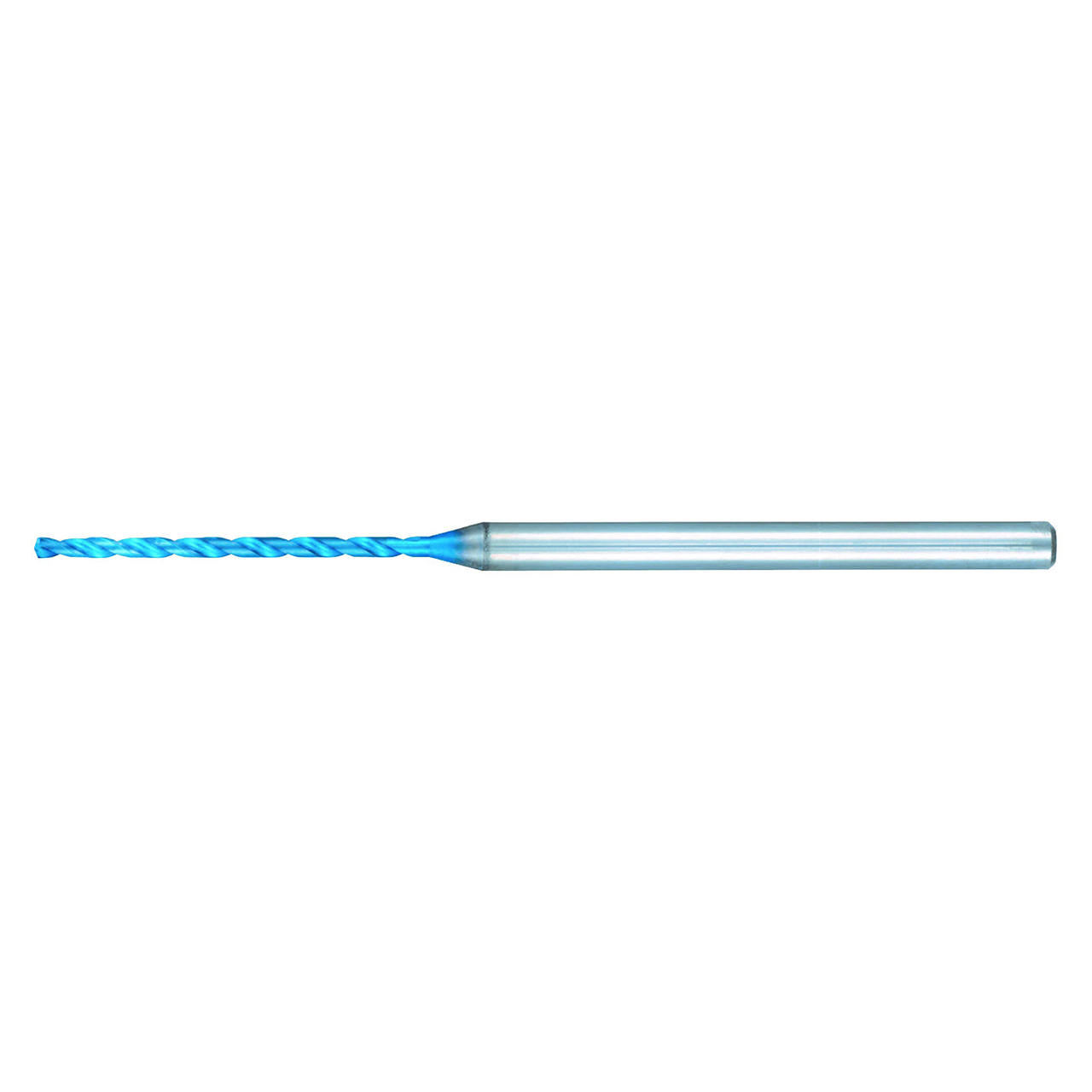

Product Specifications
| # Manufacturer Number | 0730725 |
| Diameter (mm) | 5.80mm |
| Shank Size (mm) | 6.00mm |
| Flute Length (mm) | 108.00mm |
| Overall Length (mm) | 158.00mm |
| Drill Point Angle | 140 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Finish / Coating | Aqua EX |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Endmill Type Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
0.2283
Drill Bit Size (Decimal Inch):
0.2283
Drill Bit Size (mm):
5.8
Material:
Carbide
Finish/Coating:
Aqua EX
Overall Length (Inch):
6-7/32 "
Overall Length (Decimal Inch):
6.2205";Overall Length (mm)=158.00mm"
Flute Length (Inch):
4-1/4";Flute Length (Decimal Inch)=4.2520""
Flute Length (mm):
108.00mm
Drill Point Angle:
140 Degree
Coolant Through:
Yes
Shank Type:
Endmill Type Shank
