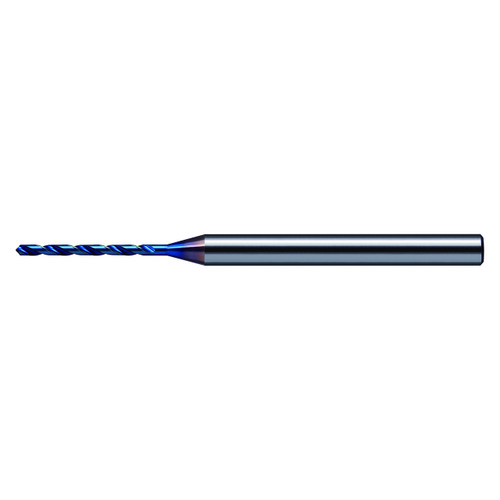

Nachi 0788415 | 0.90mm Diameter x 3.00mm Shank x 45.00mm OAL 2 Flute REVO-D Coated Carbide Micro Drill Bit

$26.78
Brand:
Nachi
Drill Bit Size (Decimal Inch):
0.0354";Drill Bit Size (mm)=0.90mm"
Drill Point Angle:
120 Degree
Flute Length (Inch):
3/7";Flute Length (Decimal Inch)=0.4252""
Flute Length (mm):
10.80mm
Shank Diameter (Inch):
1/8";Shank Diameter (Decimal Inch)=0.1181""
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
1-49/64";Overall Length (Decimal Inch)=1.7716""
Overall Length (mm):
45.00mm
Finish/Coating:
REVO-D
Coolant Through:
NO
SKU:
10267306
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Nachi 0788415 | 0.90mm Diameter x 3.00mm Shank x 45.00mm OAL 2 Flute REVO-D Coated Carbide Micro Drill Bit

Product Specifications
# Manufacturer Number0788415
Diameter (mm)0.90mm
Shank Size (mm)3.00mm
Flute Length (mm)10.80mm
Overall Length (mm)45.00mm
Drill Point Angle120 Degree
Number of Flute2
MaterialCarbide
Finish / CoatingREVO-D
Coolant ThroughNO
Cutting DirectionRight
Flute TypeConventional Spiral
Shank TypeEndmill Type Shank

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Nachi
Drill Bit Size (Decimal Inch):
0.0354";Drill Bit Size (mm)=0.90mm"
Drill Point Angle:
120 Degree
Flute Length (Inch):
3/7";Flute Length (Decimal Inch)=0.4252""
Flute Length (mm):
10.80mm
Shank Diameter (Inch):
1/8";Shank Diameter (Decimal Inch)=0.1181""
Shank Diameter (mm):
3.00mm
Overall Length (Inch):
1-49/64";Overall Length (Decimal Inch)=1.7716""
Overall Length (mm):
45.00mm
Finish/Coating:
REVO-D
Coolant Through:
NO
