Product Specifications

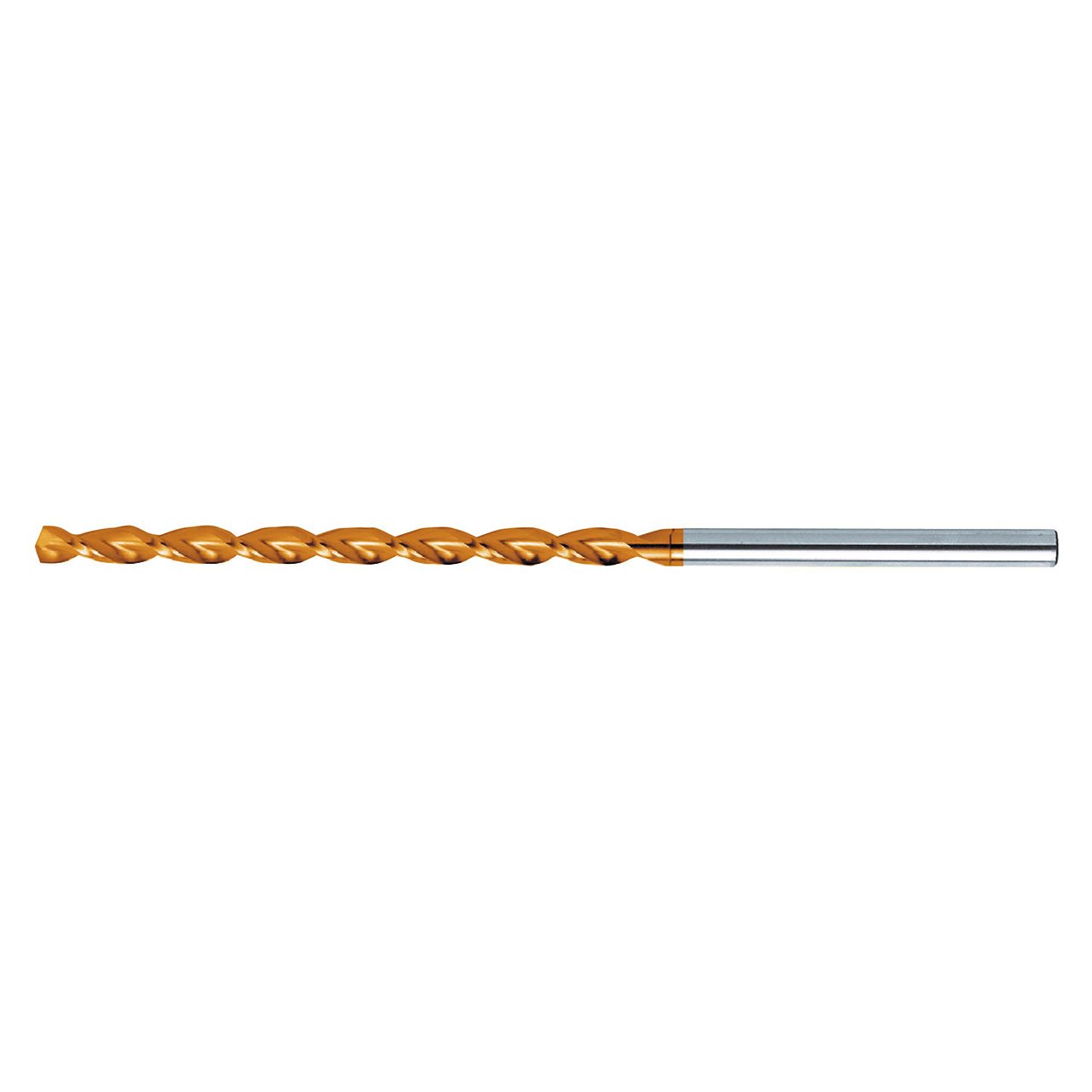

| # Manufacturer Number | 1001526 |
| Diameter (Inch) | 1/8" |
| Shank (Inch) | 13/64"" |
| Flute Length (Inch) | 2-3/4" |
| Overall Length (Inch) | 5-1/8" |
| Drill Point Angle | 118 |
| Number of Flute | 2 |
| Material | HSS |
| Finish / Coating | Tin |
| Coolant Through | No |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
1/8";Drill Bit Size (Decimal Inch)=0.1250""
Drill Bit Size (mm):
3.18mm
Shank Type:
Straight Shank
Flute Length (Inch):
2-3/4";Flute Length (Decimal Inch)=2.7500""
Flute Length (mm):
69.85mm
Overall Length (Inch):
5-1/8";Overall Length (Decimal Inch)=5.1250""
Overall Length (mm):
130.18mm
Drill Point Angle:
118 Degree
Finish/Coating:
Tin
Material:
HSS
Coolant Through:
No
