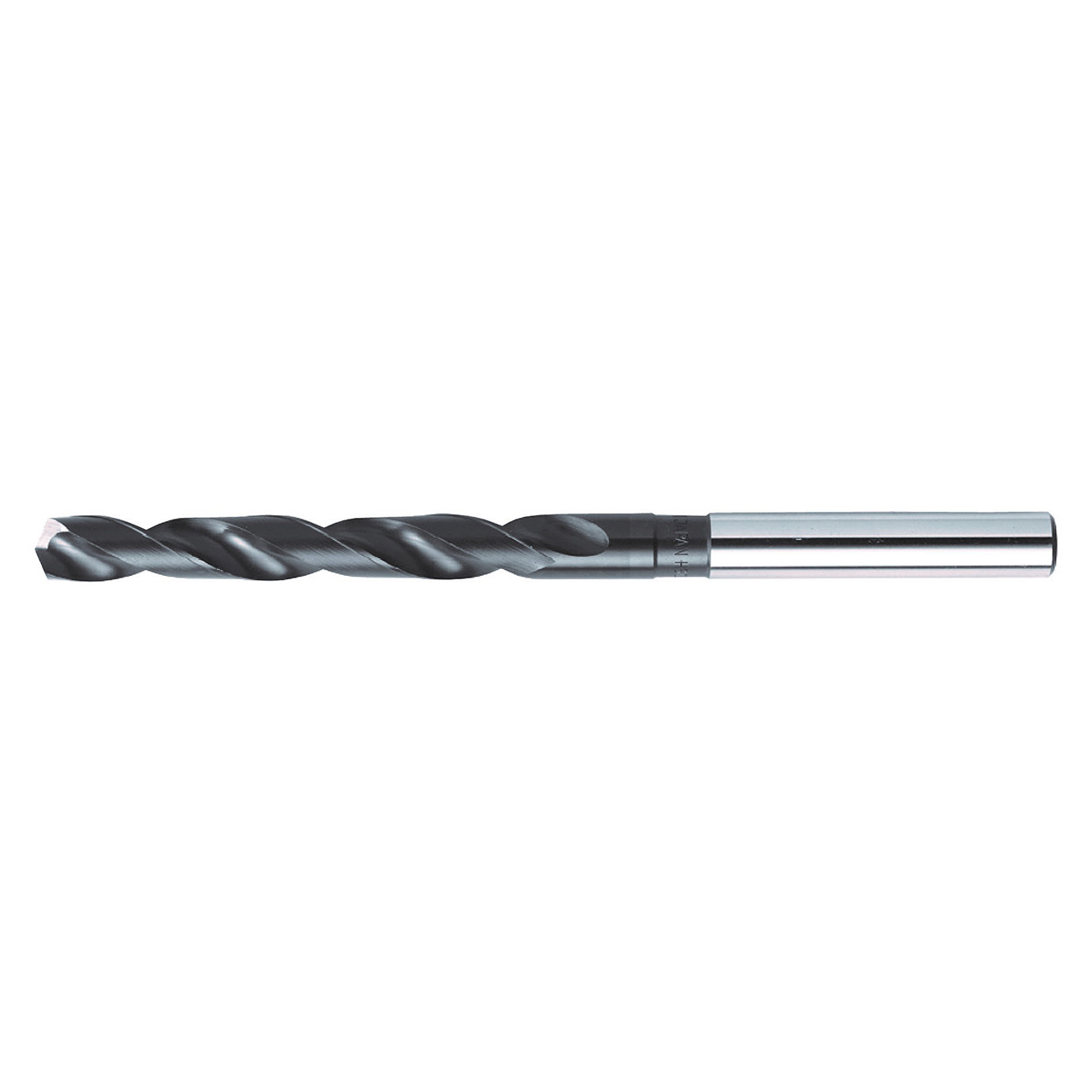

Product Specifications
| # Manufacturer Number | 1054019 |
| Diameter (Inch) | 11/64" |
| Shank (Inch) | 13/64"" |
| Flute Length (Inch) | 3-3/8" |
| Overall Length (Inch) | 5-3/4" |
| Drill Point Angle | 118 |
| Number of Flute | 3 |
| Material | High Speed Cobalt Steel |
| Finish / Coating | Black Oxide |
| Coolant Through | No |
| Cutting Direction | Right |
| Flute Type | Conventional Spiral |
| Shank Type | Straight Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Nachi
Drill Bit Size (Inch):
11/64"
Drill Bit Size (Decimal Inch):
0.1719"""
Drill Bit Size (mm):
4.37mm
Shank Type:
Straight Shank
Flute Length (Inch):
3-3/8"
Flute Length (Decimal Inch):
3.3750"""
Flute Length (mm):
85.73mm
Overall Length (Inch):
5-3/4"
Overall Length (Decimal Inch):
5.7500"""
Overall Length (mm):
146.05mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Cobalt Steel
Coolant Through:
No
interval quantity:
10
