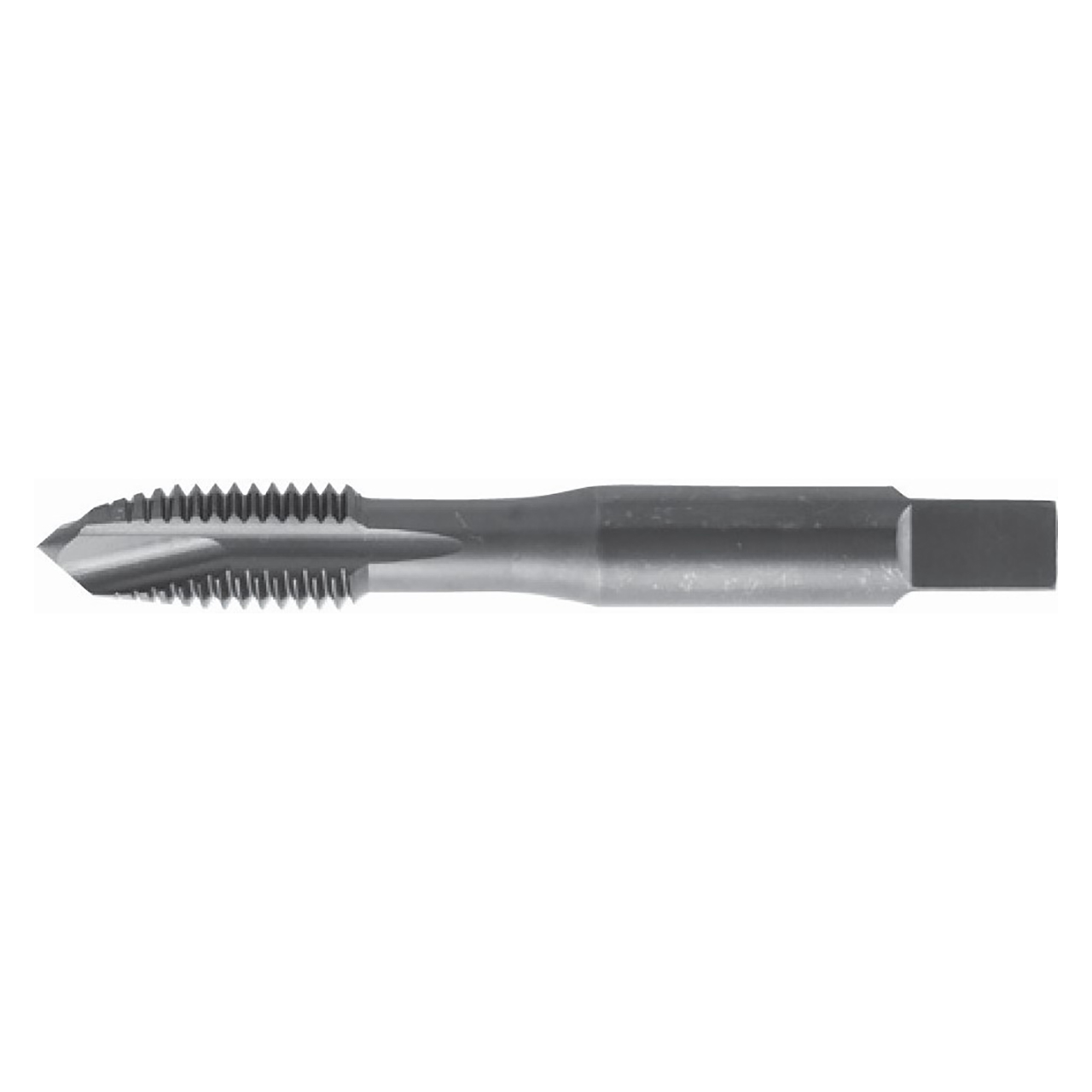

Nachi 87242 | 0.3540" Thread x 4-40 Pitch x 0.1410" Shank x 1-7/8" OAL 2F Flute Black Oxide Coated HSSE-V Spiral Point Tap

$11.61
Brand:
Nachi
Thread Limit:
H3
Number of Flutes:
2
Material:
HSSE-V
Finish/Coating:
Black Oxide
Overall Length (Inch):
1-7/8"
Overall Length (Decimal Inch):
1.8800"
Overall Length (mm):
47.63mm
Thread Length (Inch):
23/64"
Thread Length (Decimal Inch):
0.3540"
Thread Length (Decimal Inch):
8.99mm
Shank Diameter (Inch):
9/64"
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
interval quantity:
1
SKU:
15015464
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Nachi 87242 | 0.3540" Thread x 4-40 Pitch x 0.1410" Shank x 1-7/8" OAL 2F Flute Black Oxide Coated HSSE-V Spiral Point Tap

Product Specifications
# Manufacturer Number87242
Shank Size0.1410"
Overall Length 1-7/8"
Number of Flutes2
Finish / CoatingBlack Oxide
MaterialHSSE-V
Cutting DirectionRight
Flute TypeSpiral Point
Thread Length0.3540"
Size-Pitch 4-40
LimitH3
Tap TypePlug
Helix DirectionRight Hand

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Nachi
Thread Limit:
H3
Number of Flutes:
2
Material:
HSSE-V
Finish/Coating:
Black Oxide
Overall Length (Inch):
1-7/8"
Overall Length (Decimal Inch):
1.8800"
Overall Length (mm):
47.63mm
Thread Length (Inch):
23/64"
Thread Length (Decimal Inch):
0.3540"
Thread Length (Decimal Inch):
8.99mm
Shank Diameter (Inch):
9/64"
Shank Diameter (Decimal Inch):
0.1410"
Shank Diameter (mm):
3.58mm
interval quantity:
1
