Noga DG61003 | Magnetic Base Dial & Test Indicator Holder With Fine Adjustment

Description

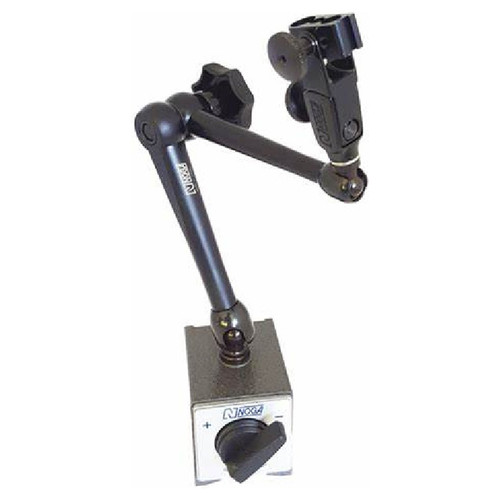

The Noga DG61003 is a robust noga indicator holder made for repeatable dimensional checks in machine shops and inspection stations. This noga indicator holder features 176 lbs. of holding power for secure fixturing on magnetic surfaces while positioning dial and test indicators. Its clamp accepts 6mm, 8mm, 3/8", and dovetail posts to support a wide range of noga dial indicator holder styles and test indicator stems. Fine adjustment on both the top and bottom arms provides micropositioning control for precision hole and surface measurement. The bottom thread is external M8, enabling firm integration with tooling plates and fixturing. With a bottom arm length of 110mm and a top arm length of 101mm the total length of 282mm gives versatile reach for in-process inspection. The magnet delivers 800 N of force across a 50mm × 60mm footprint for stable seating without chatter. Magnet height of 55mm and compact form factor make this noga magnetic base suitable for confined setups and repetitive inspection tasks. Hardened construction and precision joints maintain alignment under load for accurate reading transfer to dial test indicators. The holder’s ergonomic controls speed adjustment while preserving fine resolution for runout and flatness checks. Use the Noga DG61003 as a core component of a portable inspection kit or fixed metrology station for reliable, repeatable results. The product is ideal for quality engineers who need a dependable noga test indicator holder with strong magnetic retention. Integrate this Noga magnetic base indicator holder into inspection workflows to reduce setup time and improve measurement confidence.

Product Features and Benefits

176 lbs. Holding Power

High magnetic force ensures the Noga DG61003 noga magnetic base stays secure during dynamic measurements and prevents indicator drift.

Multi Post Clamp Compatibility

Clamp accepts 6mm, 8mm, 3/8", and dovetail stems, so the noga dial indicator holder supports most indicator shanks and test indicator types.

Fine Adjustment Arms

Top arm (101mm) and bottom arm (110mm) fine adjustments allow micro-positioning for precise contact placement during hole and surface inspection.

Robust Magnet Dimensions

The 800 N magnet force with a 50mm × 60mm footprint and 55mm height delivers stable base support for repeatable measurements with dial indicators.

M8 Bottom Thread For Secure Mounting

External M8 bottom thread enables rigid attachment to tooling plates or fixtures for fixed metrology setups using the noga indicator holder.

Frequently Asked Questions

What is the holding power of the Noga DG61003?

The Noga DG61003 provides 176 lbs. of holding power (800 N magnet force) for stable magnetic base performance.

Which indicator shank sizes does the clamp support?

The noga indicator holder clamp fits 6mm, 8mm, 3/8", and dovetail posts to accept most dial and test indicators.

What are the arm lengths and total reach?

The bottom arm is 110mm, the top arm is 101mm, and the total length is 282mm for flexible positioning in inspection tasks.

Can the magnetic base be mounted to fixtures?

Yes, the bottom thread is external M8 allowing the noga magnetic base to be securely mounted to tooling plates or fixtures.

Is this suitable for precision test indicator work?

Absolutely, the fine adjustment mechanism and rigid magnetic base make the Noga DG61003 ideal as a noga test indicator holder for precision measurements.
