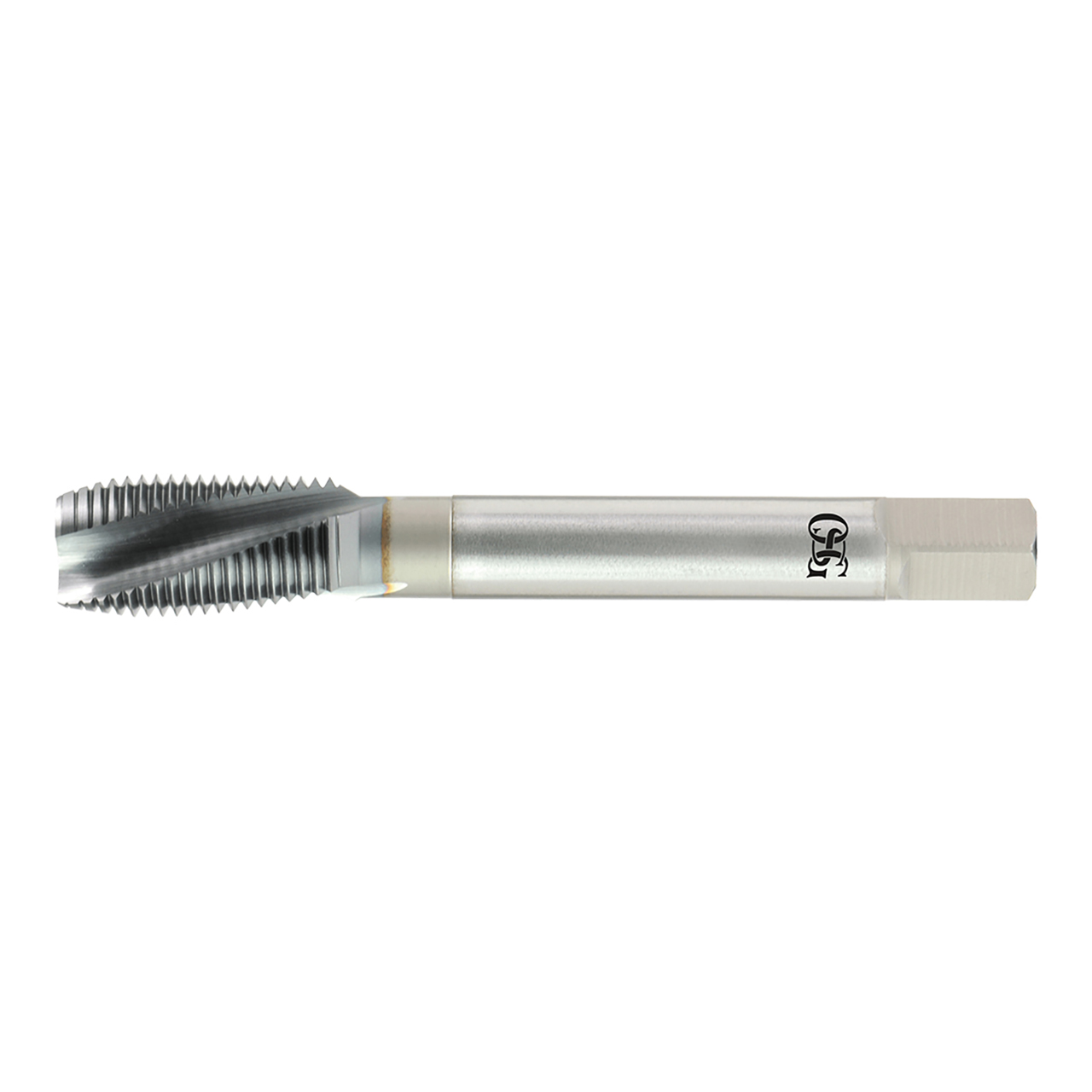

OSG 1306300608 | EXO #10- 32 Thread Size x 0.194" Shank x 0.492" Thread Length x 2.374" OAL UNF H3 Plug (4.5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 13063 Spiral Point Tap

$47.96 $32.13
(You save $15.83)
Brand:
OSG
Number of Flutes:
3
Material:
VC-10
Finish/Coating:
V
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17997499
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1306300608 | EXO #10- 32 Thread Size x 0.194" Shank x 0.492" Thread Length x 2.374" OAL UNF H3 Plug (4.5P) Chamfer Type 3 Flute Right Hand V Coated VC-10 13063 Spiral Point Tap

Features & Benefits:

  • Full Eccentric relief: Free cutting produces less friction, thereby less heat generation to wear the tap.
  • Left hand spiral (LHS): Reverese the direction of chip flow out the front of the hole to eliminate chip packing.
  • Multi-layered TiCN (V) coating from OSG: The layered configuration resists thermal cracking while increasing surface hardness to extend life up to 3X vs monolayered TiCN.

Product Specifications
Manufacturer Part Number1306300608
Chamfer Length (Decimal Inch)0.141"
Major Diameter (Decimal Inch)0.190"
Neck Length (Decimal Inch)0.866"
Number of Flutes3
Overall Length (Decimal Inch)2.374"
Shank Diameter (Decimal Inch)0.194"
Square Length (Decimal Inch)0.250"
Square Width (Decimal Inch)0.152"
Maximum Tap Drill Size (Decimal Inch)0.164"
Minimum Tap Drill Size (Decimal Inch)0.156"
Thread Length (Decimal Inch)0.492"
Thread Size NumberNo. 10
CoatingV
MaterialVC-10
Helix DirectionLeft Hand
Helix Angle (Degree)21 Degree
Series13063 Series
Product TypeSpiral Point Tap
