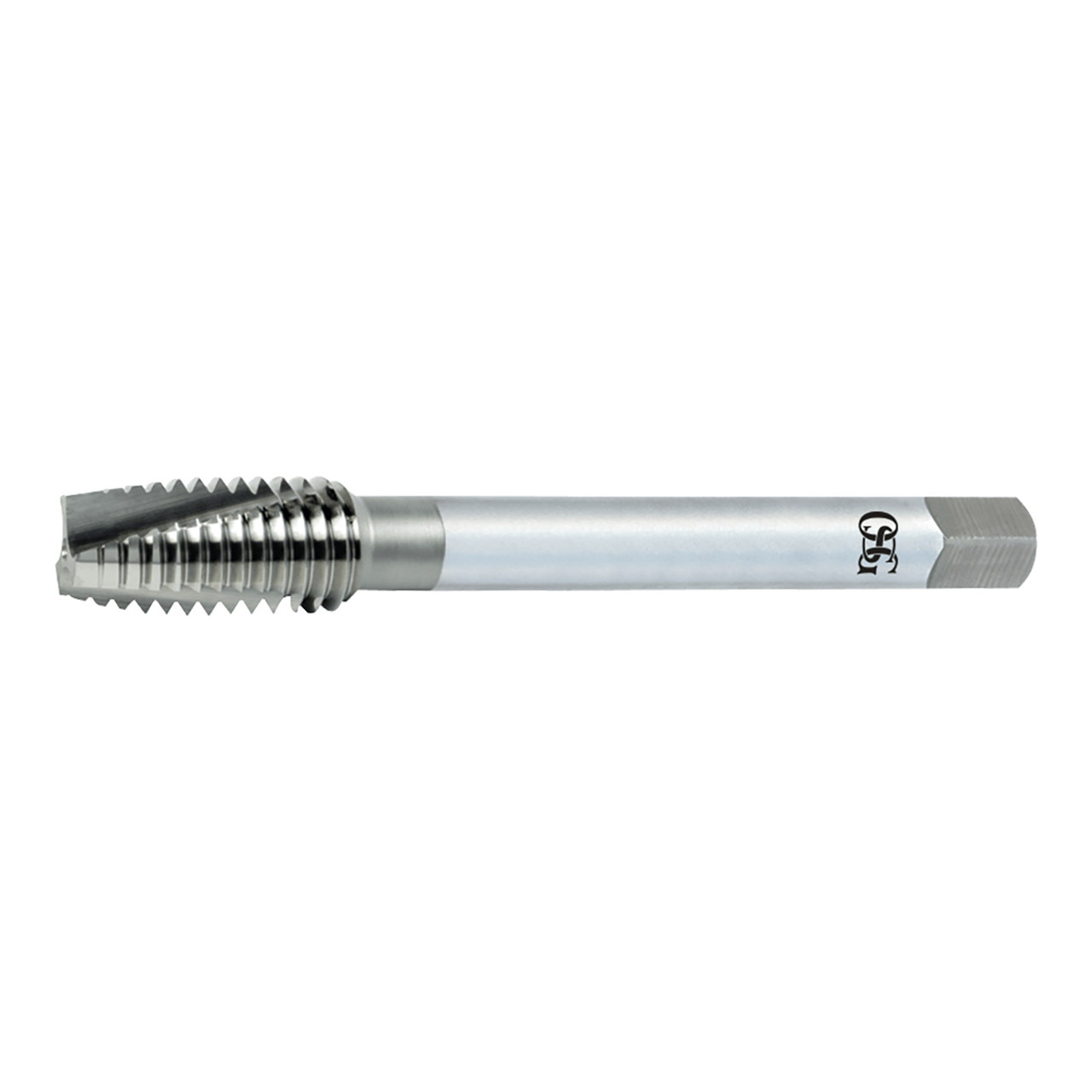

OSG 1606000 | #5- 40 Thread Size x 0.141" Shank x 0.323" Thread Length x 1.938" OAL UNC H2 Plug (4.5P) Chamfer Type 2 Flute Right Hand Bright Coated HSS 105A Spiral Point Tap

$28.46 $12.81
(You save $15.65)
Brand:
OSG
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18000906
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1606000 | #5- 40 Thread Size x 0.141" Shank x 0.323" Thread Length x 1.938" OAL UNC H2 Plug (4.5P) Chamfer Type 2 Flute Right Hand Bright Coated HSS 105A Spiral Point Tap

General Purpose spiral point tap series that provides exceptional value for all general threading applications.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number1606000
Chamfer Length (Decimal Inch)0.113"
Major Diameter (Decimal Inch)0.125"
Neck Length (Decimal Inch)0.618"
Number of Flutes2
Overall Length (Decimal Inch)1.938"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.106"
Minimum Tap Drill Size (Decimal Inch)0.098"
Thread Length (Decimal Inch)0.323"
Thread Size NumberNo. 5
CoatingBright
MaterialHSS
Series105A Series
Product TypeSpiral Point Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
