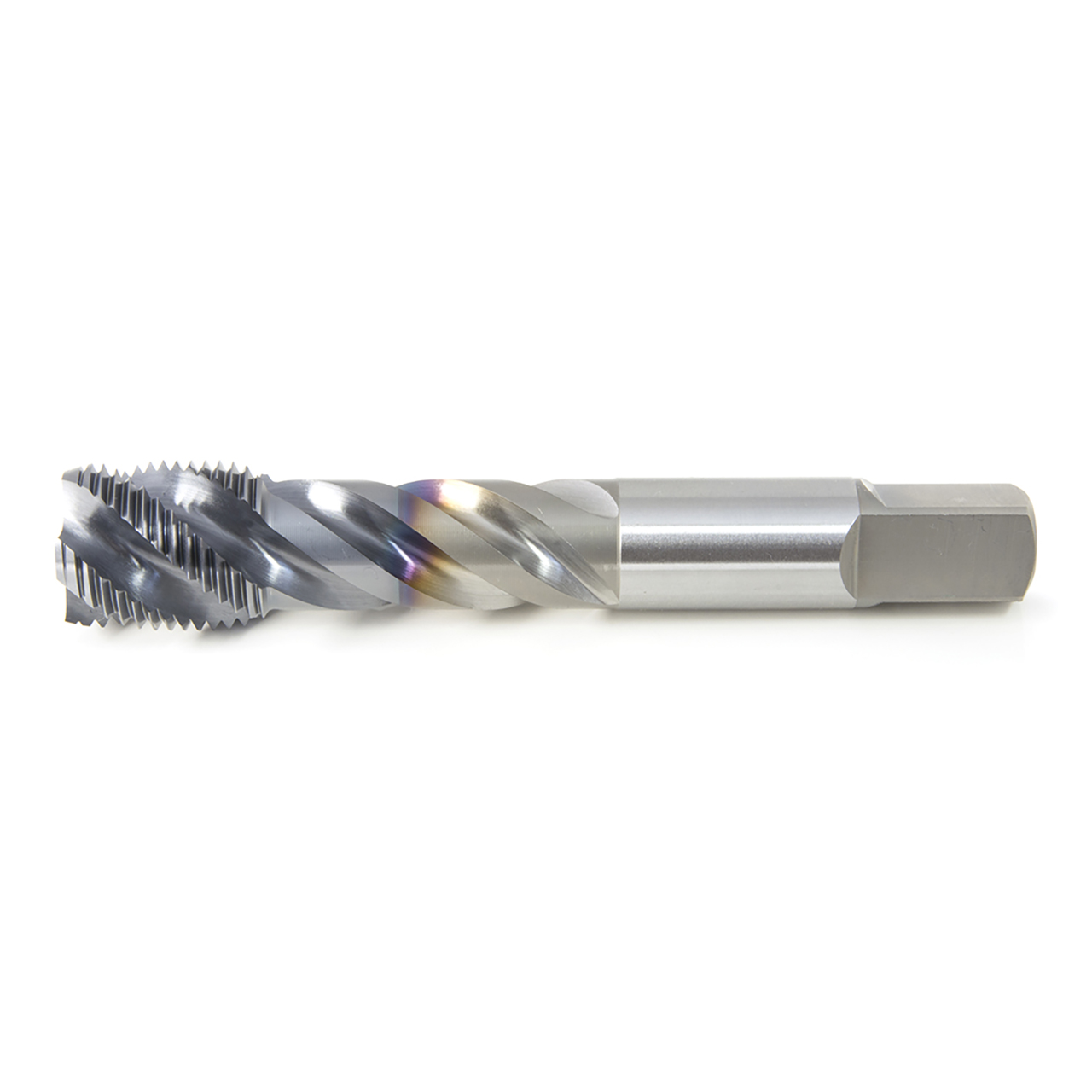

OSG 1749701 | EXO #12- 24 Thread Size x 0.220" Shank x 0.331" Thread Length x 2.375" OAL UNC H3 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSSE 303 Spiral Flute Tap

$33.65 $31.29
(You save $2.36)
Brand:
OSG
Overall Length (Decimal Inch):
2.3750"
Number of Flutes:
3
Material:
HSSE
Finish/Coating:
Steam Oxide
Flute Direction:
Right Hand
interval quantity:
1
SKU:
18002741
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1749701 | EXO #12- 24 Thread Size x 0.220" Shank x 0.331" Thread Length x 2.375" OAL UNC H3 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Steam Oxide Coated HSSE 303 Spiral Flute Tap

Features & Benefits:

  • HSSE material: Increased wear resistance
  • Spiral Flute: For blind hole applications
  • Steam Oxide surface treatment: S/O increases mechanical lubricity
  • OSG V-Coating: Increased hardness, lubricity & wear resistance

Product Specifications
Manufacturer Part Number1749701
Chamfer Length (Decimal Inch)0.104"
Major Diameter (Decimal Inch)0.216"
Neck Length (Decimal Inch)0.933"
Number of Flutes3
Overall Length (Decimal Inch)2.375"
Shank Diameter (Decimal Inch)0.220"
Square Length (Decimal Inch)0.281"
Square Width (Decimal Inch)0.165"
Maximum Tap Drill Size (Decimal Inch)0.181"
Minimum Tap Drill Size (Decimal Inch)0.171"
Thread Length (Decimal Inch)0.331"
Thread Size NumberNo. 12
CoatingSteam Oxide
MaterialHSSE
Helix DirectionRight Hand
Helix Angle (Degree)45 Degree
Series303 Series
Product TypeSpiral Flute Tap
