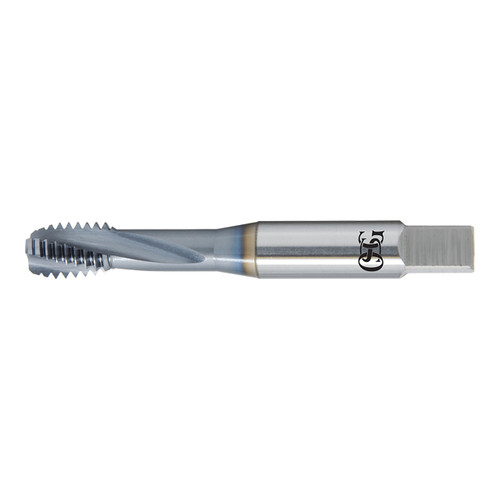

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Flute: For blind hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 1752501 |
| Chamfer Length (Decimal Inch) | 0.078" |
| Major Diameter (Decimal Inch) | 0.190" |
| Neck Length (Decimal Inch) | 0.866" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.375" |
| Shank Diameter (Decimal Inch) | 0.194" |
| Square Length (Decimal Inch) | 0.250" |
| Square Width (Decimal Inch) | 0.152" |
| Maximum Tap Drill Size (Decimal Inch) | 0.164" |
| Minimum Tap Drill Size (Decimal Inch) | 0.156" |
| Thread Length (Decimal Inch) | 0.327" |
| Thread Size Number | No. 10 |
| Coating | Steam Oxide |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Series | 313 Series |
| Product Type | Spiral Flute Tap |
