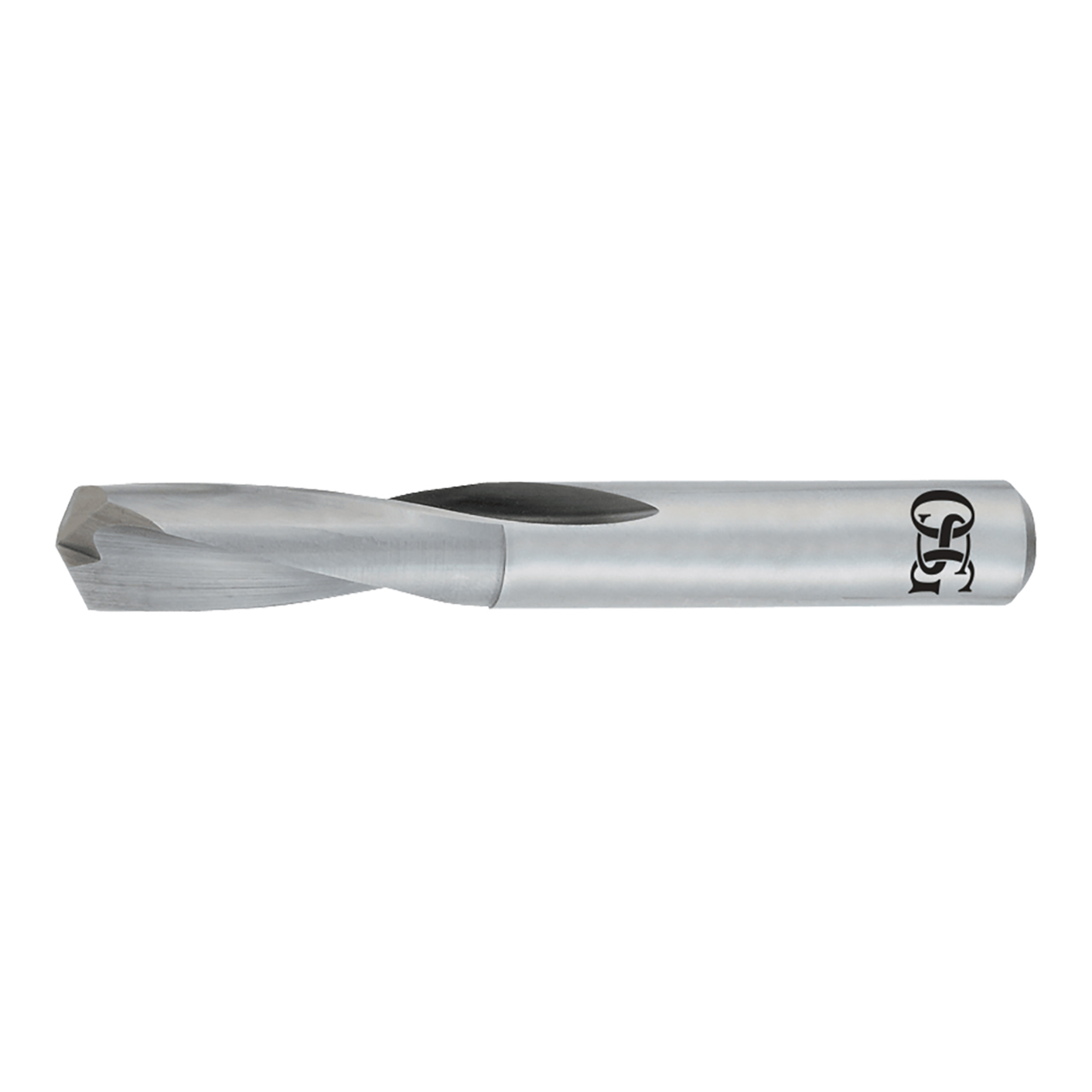

The Standard Carbide drill lineup consists of a variety of different drill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Features & Benefits:
- Micrograin Carbide: Superior hardness & wear resistance versus High Speed Steel
- Multiple Coatings: Bright, TiN, TiCN and TiAlN available
- OSG Quality Certified: Performance and quality are the same every time, tool after tool
Product Specifications
| Manufacturer Part Number | 215-1015 |
| Diameter (Decimal Inch) | 0.102" |
| Diameter (mm) | 2.58mm |
| Flute Length (mm) | 20.64mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 46.04mm |
| Shank Diameter (mm) | 2.58mm |
| Coating | Bright |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Point Angle (Degree) | 135 Degree |
| Series | 215 Series |
| Product Type | Jobber Length Drill Bit |
