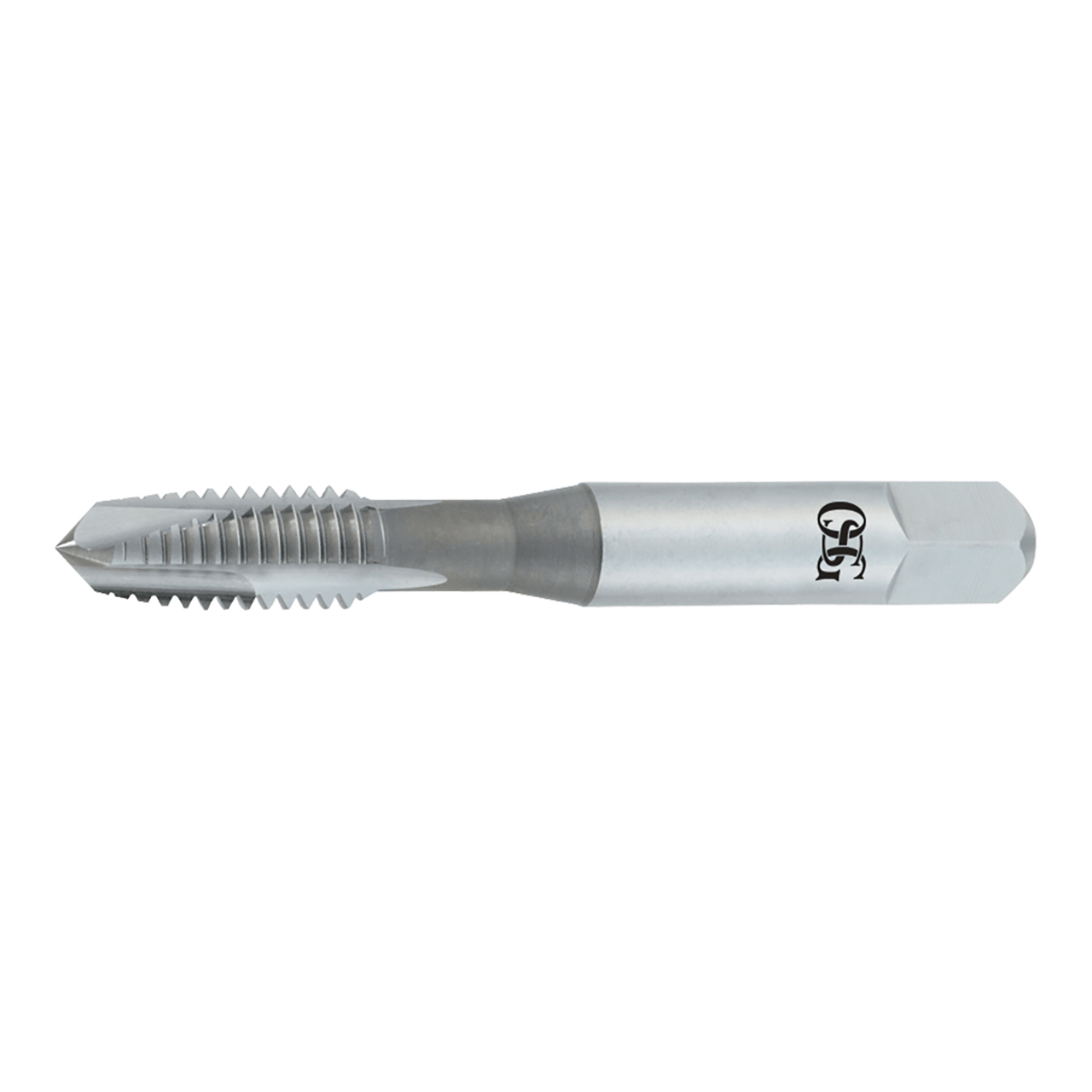

OSG 2884201 | HY-PRO #1- 64 Thread Size x 0.141" Shank x 0.374" Thread Length x 1.688" OAL x 2B Class of Fit UNC Plug (5P) Chamfer Type 2 Flute Right Hand Steam Oxide Coated HSS 287 Spiral Point Tap

$29.75 $13.39
(You save $16.36)
Brand:
OSG
Material:
HSS
Finish/Coating:
Steam Oxide
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
18003843
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 2884201 | HY-PRO #1- 64 Thread Size x 0.141" Shank x 0.374" Thread Length x 1.688" OAL x 2B Class of Fit UNC Plug (5P) Chamfer Type 2 Flute Right Hand Steam Oxide Coated HSS 287 Spiral Point Tap

HY-PRO SEVEN is a class of fit spiral point tap for ferrous and non-ferrous materials.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Spiral Point: For through hole applications
  • Bright, Steam Oxide surface treatment: S/O increases mechanical lubricity
  • TiCN coating: Improves wear resistance for extended tap life

Product Specifications
Manufacturer Part Number2884201
Chamfer Length (Decimal Inch)0.078"
Major Diameter (Decimal Inch)0.073"
Number of Flutes2
Overall Length (Decimal Inch)1.688"
Shank Diameter (Decimal Inch)0.141"
Square Length (Decimal Inch)0.188"
Square Width (Decimal Inch)0.110"
Maximum Tap Drill Size (Decimal Inch)0.062"
Minimum Tap Drill Size (Decimal Inch)0.056"
Thread Length (Decimal Inch)0.374"
Thread Size NumberNo. 1
CoatingSteam Oxide
MaterialHSS
Series287 Series
Product TypeSpiral Point Tap
