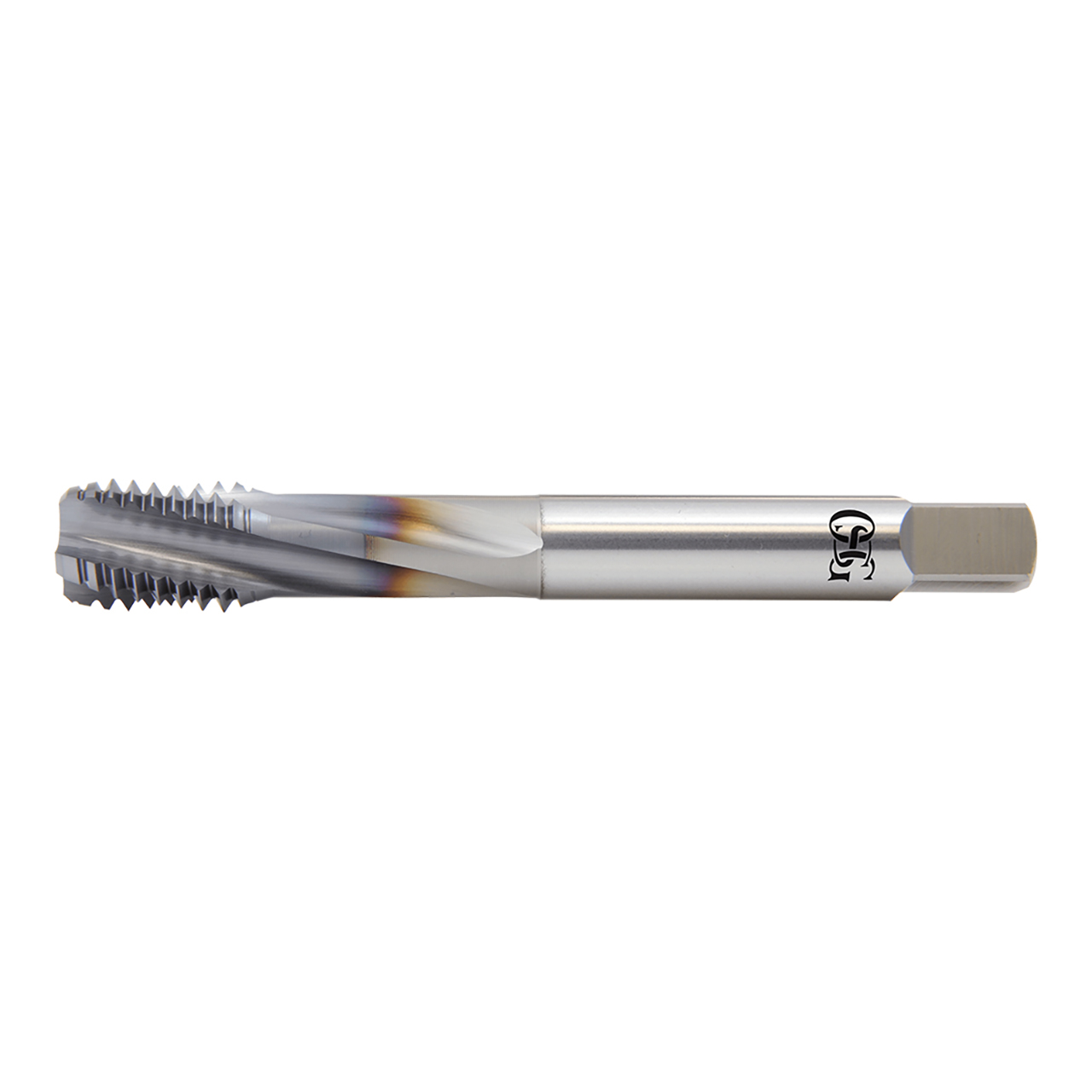

EXOTAP VC-10 is the premium solution for tapping in difficult to machine materials.
Features & Benefits:
- Premium Powdered Metal VC-10 substrate: Increased hardness for longer life
- Spiral Flute: For blind hole applications
- Steam Oxide surface treatment: S/O increases mechanical lubricity
- OSG V-Coating: Increased hardness, lubricity & wear resistance
Product Specifications
| Manufacturer Part Number | 31702208 |
| Chamfer Length (Decimal Inch) | 0.104" |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.378" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 3.543" |
| Shank Diameter (Decimal Inch) | 0.381" |
| Square Length (Decimal Inch) | 0.438" |
| Square Width (Decimal Inch) | 0.286" |
| Maximum Tap Drill Size (Decimal Inch) | 0.340" |
| Minimum Tap Drill Size (Decimal Inch) | 0.330" |
| Thread Length (Decimal Inch) | 0.500" |
| Thread Size (Inch) | 3/8" |
| Coating | V |
| Material | VC-10 |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 15 Degree |
| Series | 317 Series |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

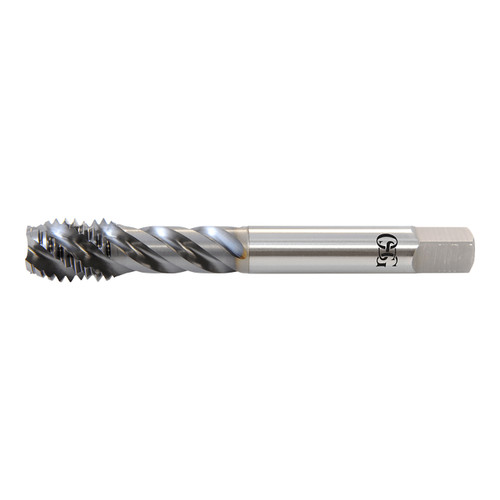

Related Products
