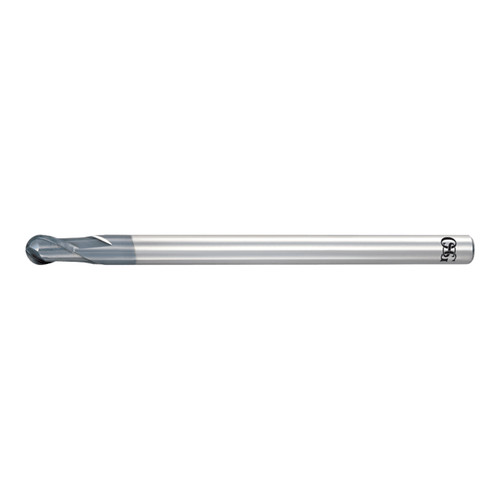

Premium High Performance Carbide Ball Mills for Pre-hardened & Hardened Steels
Features & Benefits:
- Ultra-fine micrograin carbide: The hardest ost Wear resistant carbide possible for incredible Wear Resistance
- High Precision geometry - Ball End Mills have +/-5um radius tolerance: High accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter: Tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXL coating - +1100 Celsius Oxidation Temp. & +3100Hv in Hardness: Higher coating oxidation temp & Hardness dramatically improve Wear Resistance
Product Specifications
| Manufacturer Part Number | 36100611 |
| Corner Radius (Decimal Inch) | 0.125" |
| Diameter (Decimal Inch) | 0.250" |
| Length of Cut (Decimal Inch) | 0.250" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 3.000" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Coating | WXL |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.2500"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Decimal Inch):
0.2500"
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
0.2500"
Number of Flutes:
2
Material:
Carbide
Finish/Coating:
WXL
Corner Radius (Decimal Inch):
0.1250"
Cutting Direction:
Right Hand
