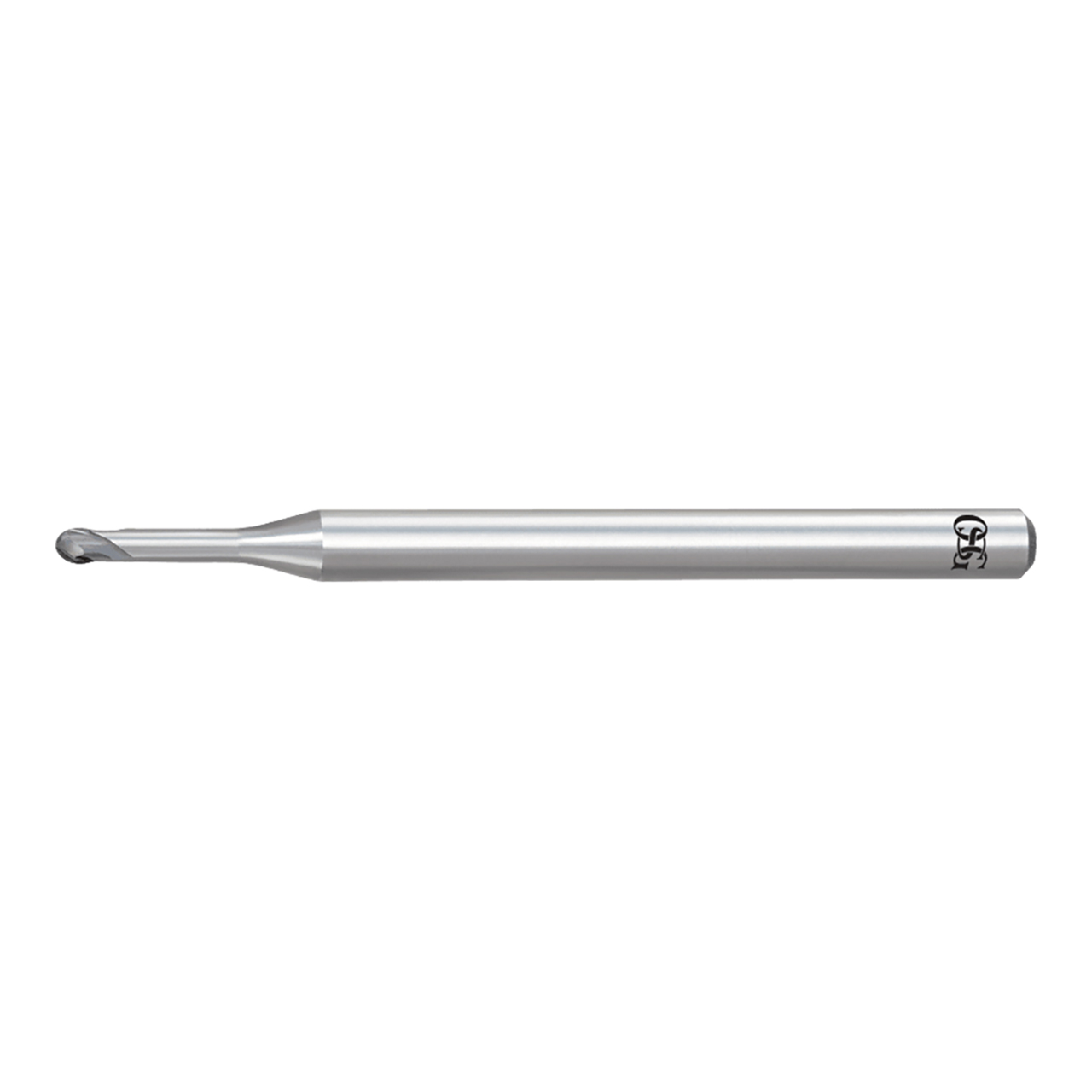

OSG 36900911 | EXOCARB 3/32" Diameter x 0.250" Shank x 0.094" LOC x 2.500" OAL x 30 Degree Helix Angle 2 Flute WXL Coated Carbide 3690 Series Ball End Mill

$93.30
Brand:
OSG
Corner Radius (Decimal Inch):
0.0470"
Cutting Direction:
Right Hand
Diameter (Inch):
3/32"
Diameter (Decimal Inch):
0.0940"
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
0.0940"
Neck Diameter (Decimal Inch):
0.0920"
Neck Length (Decimal Inch):
0.4690"
Number of Flutes:
2
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Decimal Inch):
0.2500"
Material:
Carbide
Finish/Coating:
WXL
interval quantity:
1
SKU:
25284999
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 36900911 | EXOCARB 3/32" Diameter x 0.250" Shank x 0.094" LOC x 2.500" OAL x 30 Degree Helix Angle 2 Flute WXL Coated Carbide 3690 Series Ball End Mill

Premium High Performance Carbide Ball Mills for Pre-hardened & Hardened Steels

Features & Benefits:

  • Ultra-fine micrograin carbide: The hardest ost wear resistant carbide possible for incredible wear resistance
  • High Precision geometry: High accuracy all but eliminates need for benching and rework for mold makers
  • High strength core diameter: Tools utilize thicker core diameters for the ultimate in strength and rigidity
  • WXL coating - +1100 Celsius Oxidation Temp & +3100Hv in hardness: Higher coating oxidation temp & hardness dramatically improve wear resistance

Product Specifications
Manufacturer Part Number36900911
Corner Radius (Decimal Inch)0.047"
Cutting DirectionRight Hand
Diameter (Inch)3/32"
Diameter (Decimal Inch)0.094"
Helix Angle (Degree)30 Degree
Helix DirectionRight Hand
Length of Cut (Decimal Inch)0.094"
List NameWXL-LN-EBD
Neck Diameter (Decimal Inch)0.092"
Neck Length (Decimal Inch)0.469"
Number of Flutes2
Overall Length (Decimal Inch)2.500"
Radius Tolerance (Decimal Inch)+/- 0.0002"
Shank Diameter (Decimal Inch)0.250"
Shank Toleranceh6
MaterialCarbide
CoatingWXL
Series3690
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
