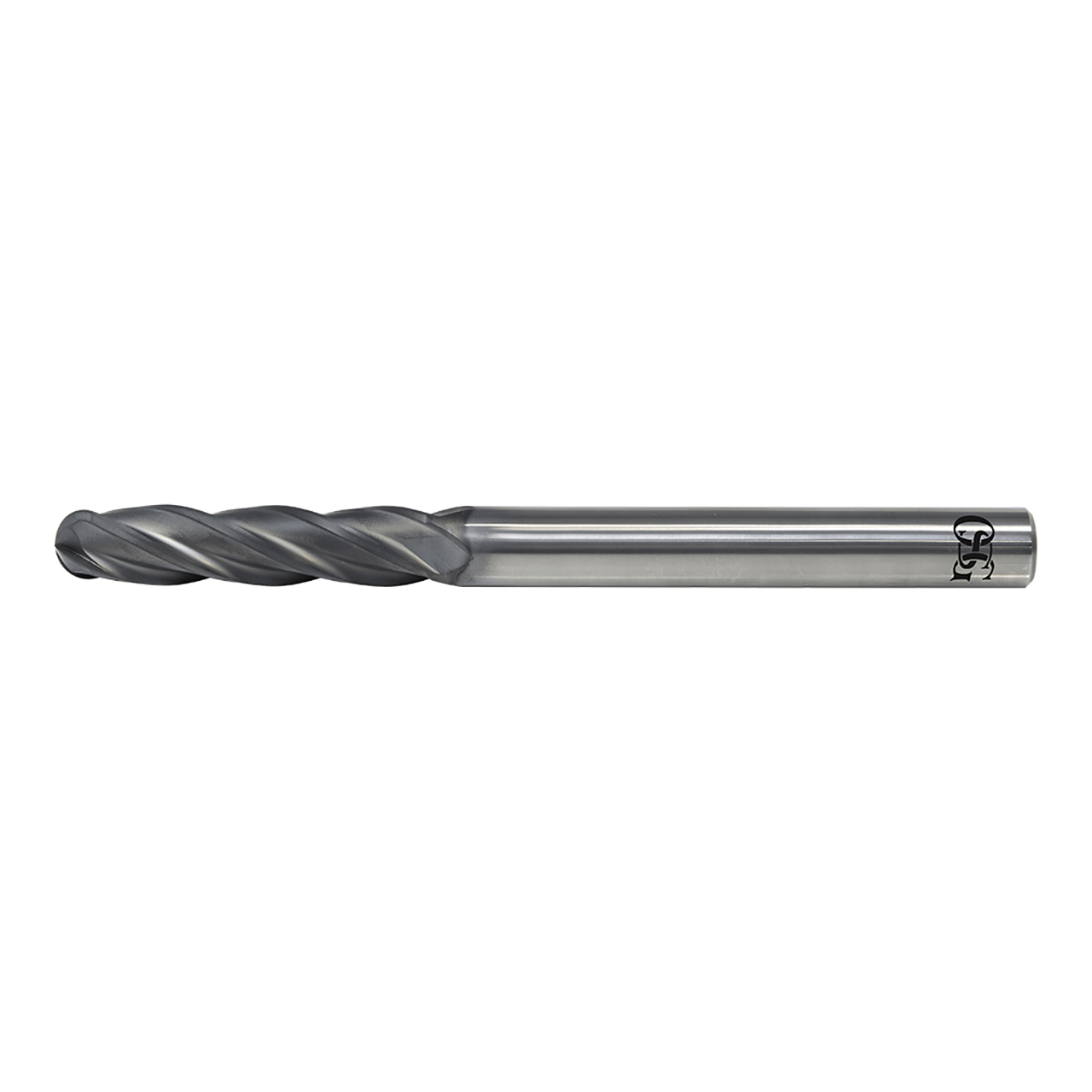

Long Length of Cut DG Coated 4-Fluted Ball Nose End Mills for Graphite
Features & Benefits:
- DG Coating: Low Resistance to minimize the chipping of the work piece, Stable diamond crystals for milling graphite
Product Specifications
| Manufacturer Part Number | 74300425 |
| Corner Radius (Decimal Inch) | 0.047" |
| Diameter (Decimal Inch) | 0.094" |
| Length of Cut (Decimal Inch) | 0.469" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Coating | DG |
| Material | Carbide |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.0940"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Decimal Inch):
0.1250"
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
0.4690"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
DG
Corner Radius (Decimal Inch):
0.0470"
Cutting Direction:
Right Hand
Pitch (mm):
1.25mm
Chamfer Length (Decimal Inch):
0.0740"
