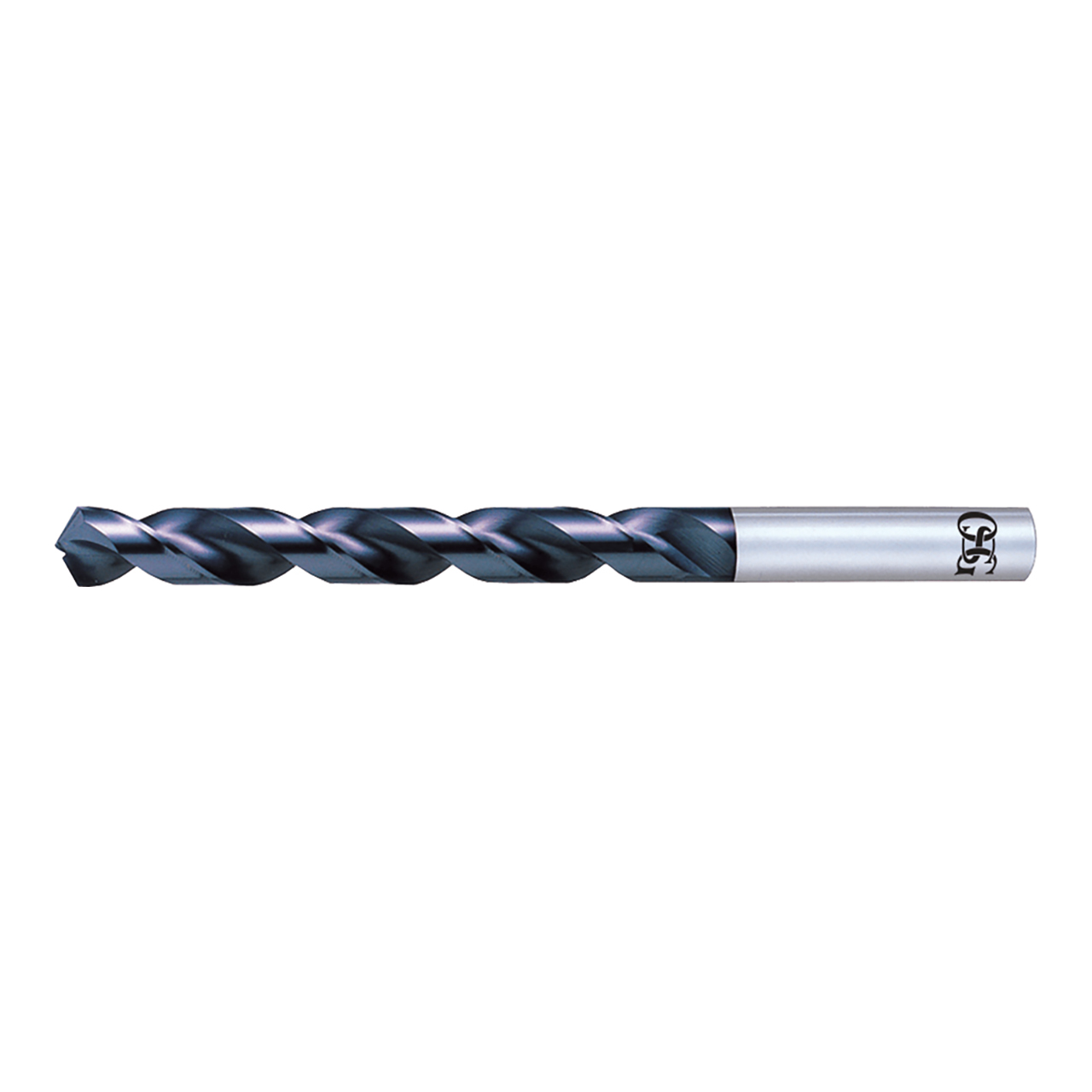

The V-Select drills are designed for a wide variety of Applications, and feature straight shanks matching the diameter of the tool, for customers requiring such features.
Features & Benefits:
- Radial Point Thinning: No center drills neeeded Achieves high accuracy while reducing drill thrust force for longer tool life
- OSG V-Coating: OSG's very own recipe which features a combination of Titanium Nitride and layered Titanium Carbon Nitride
- HSS-Va Substrate: Added heat Resistance via 3% Vanadium content yields superior performance to standard High Speed Steel drills
Product Specifications
| Manufacturer Part Number | 8594024 |
| Diameter (Decimal Inch) | 0.094" |
| Diameter (mm) | 2.40mm |
| Flute Length (mm) | 30.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 57.00mm |
| Shank Diameter (mm) | 2.40mm |
| Coating | V |
| Material | HSSE |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 35 Degree |
| Point Angle (Degree) | 120 Degree |
| Product Type | Jobber Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Diameter (Decimal Inch):
0.0940"
Overall Length (mm):
57.00mm
Shank Diameter (mm):
2.40mm
Helix Angle:
35 Degree
Number of Flutes:
2
Material:
HSSE
Finish/Coating:
V
Cutting Direction:
Right Hand
Point Angle:
120 Degree
interval quantity:
1
