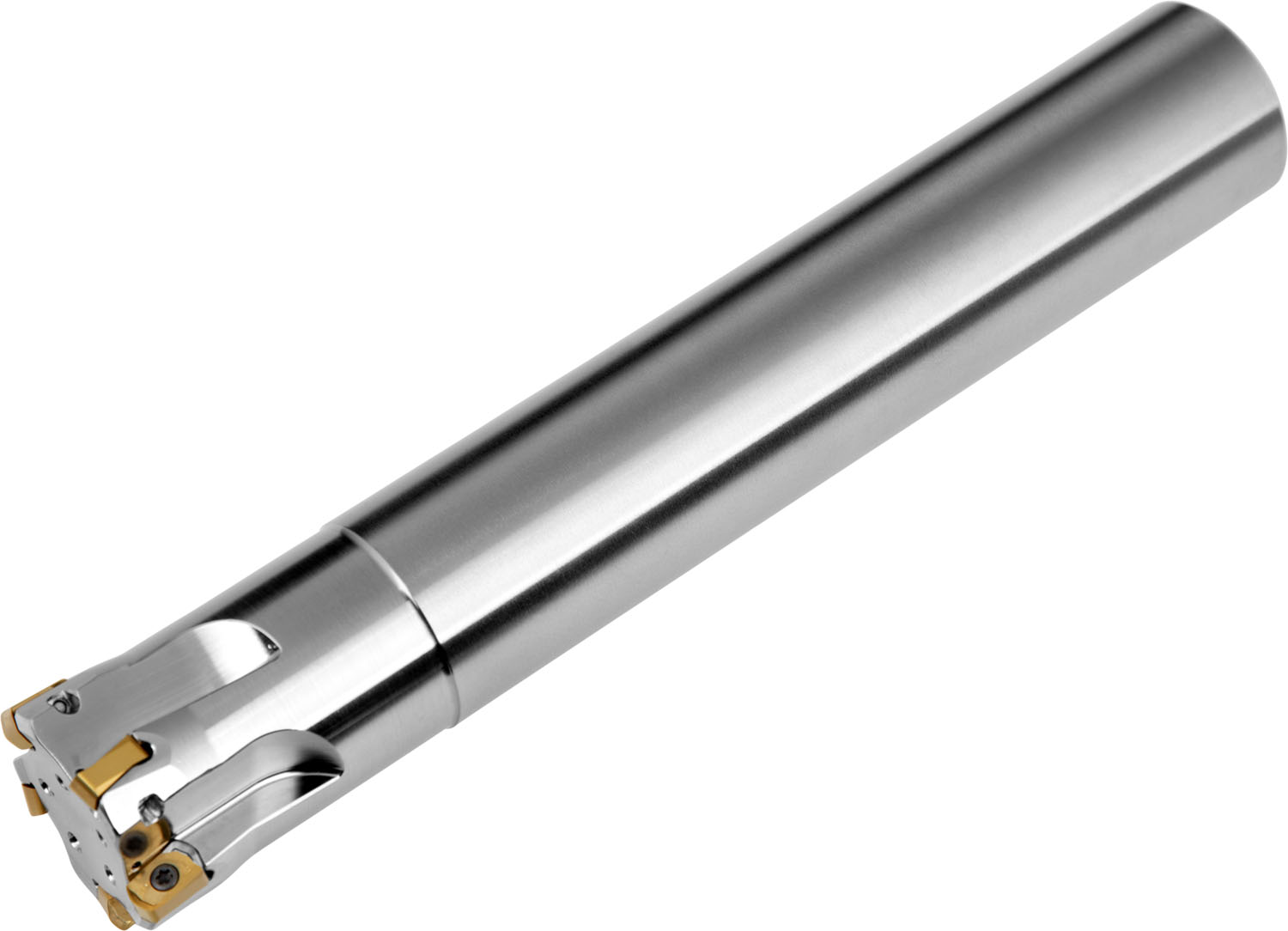

High feed cutter with double negative geometry which utilises 3 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter .75'' with 20 Degree approach angle and .75'' parallel shank according to DIN 1835A, 1.575'' functional and 5.118'' overall length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''.
Product Specifications
| EDP Number | 7455291 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10.5 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 28400 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Cutting Diameter (mm) | 12.4 mm |
| Cutting Diameter (Inch) | 0.49" |
| Max Cutting Diameter (Inch) | 0.75" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.575 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
