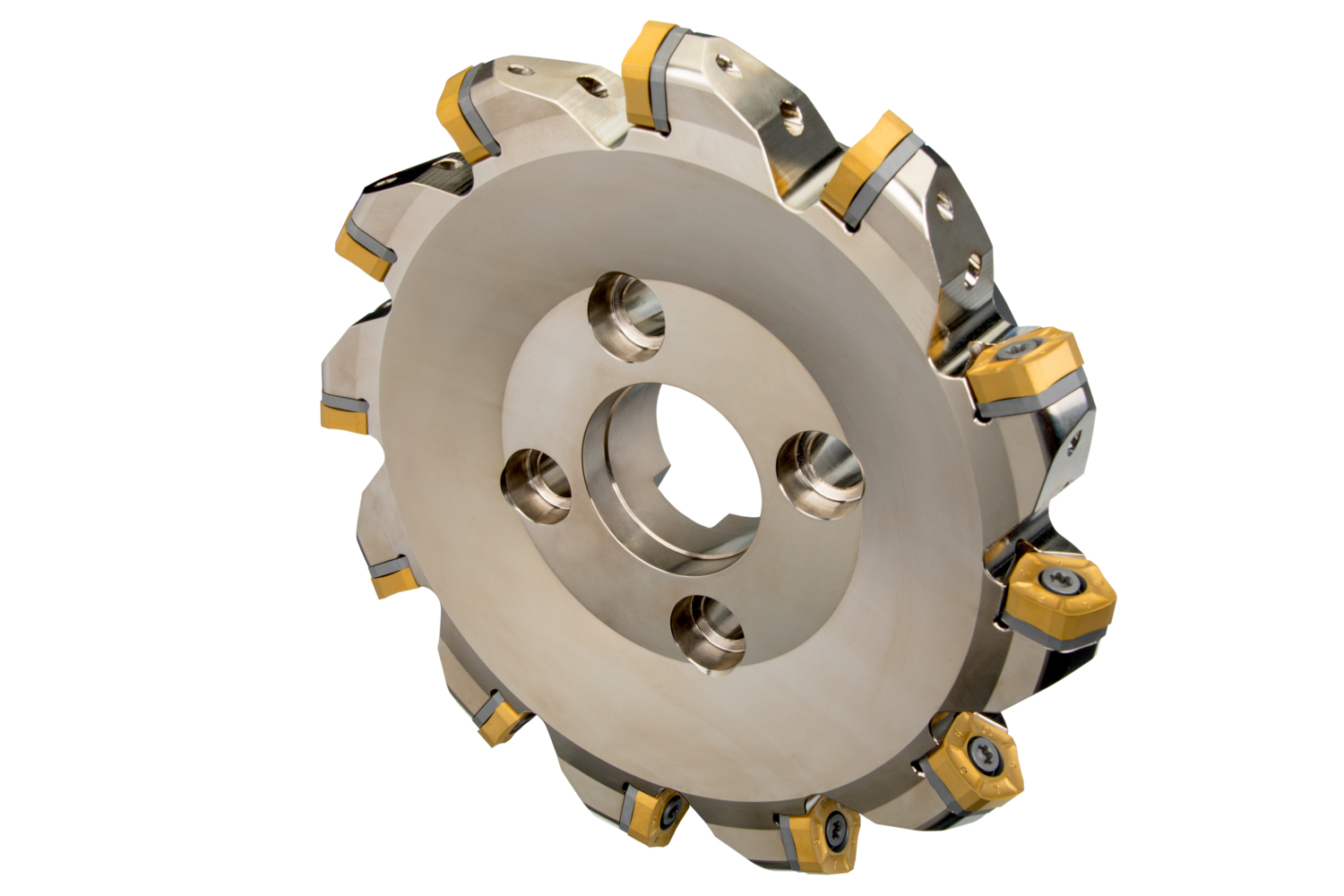

Name: Pramet 1000C12R-IS57PN13 | 254" Diameter x 2.48" Functional Length Indexable Copy Face Mill
Brand: Pramet
SKU: 23145258
Price: 1736.0 USD
Availability: InStock

Pramet 1000C12R-IS57PN13 | 254" Diameter x 2.48" Functional Length Indexable Copy Face Mill

$2,170.00 $1,736.00

(You save $434.00)

Brand:

Pramet

interval quantity:

SKU:

23145258

UPC:

Weight:

32.62 LBS

Minimum Purchase:

1 unit

Shipping:

Free Shipping

Features
Reviews
Other Details

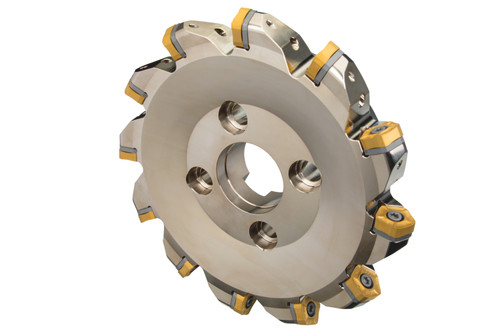

Face mill with double negative geometry which utilises 12 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 10.000 to maximum 10.627'' with 57 Degree approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''.

Product Specifications

EDP Number	6792993
Peripheral Effective Cutting Edge Count	12
Axial Rake Angle	-4
Radial Rake Angle	-5
Max Rotational Speed	2200
Connection Diameter (mm)	63.5 mm
Connection Diameter (Inch)	2.5"
Keyway Width (Inch)	1"
Keyway Depth (Inch)	0.559"
Diameter Bolt Circle 1 (Inch)	4"
Cutting Diameter (mm)	254 mm
Cutting Diameter (Inch)	10"
Max Cutting Diameter (Inch)	10.627"
Functional Length (Inch)	2.48"
Country of origin	Czech Republic
