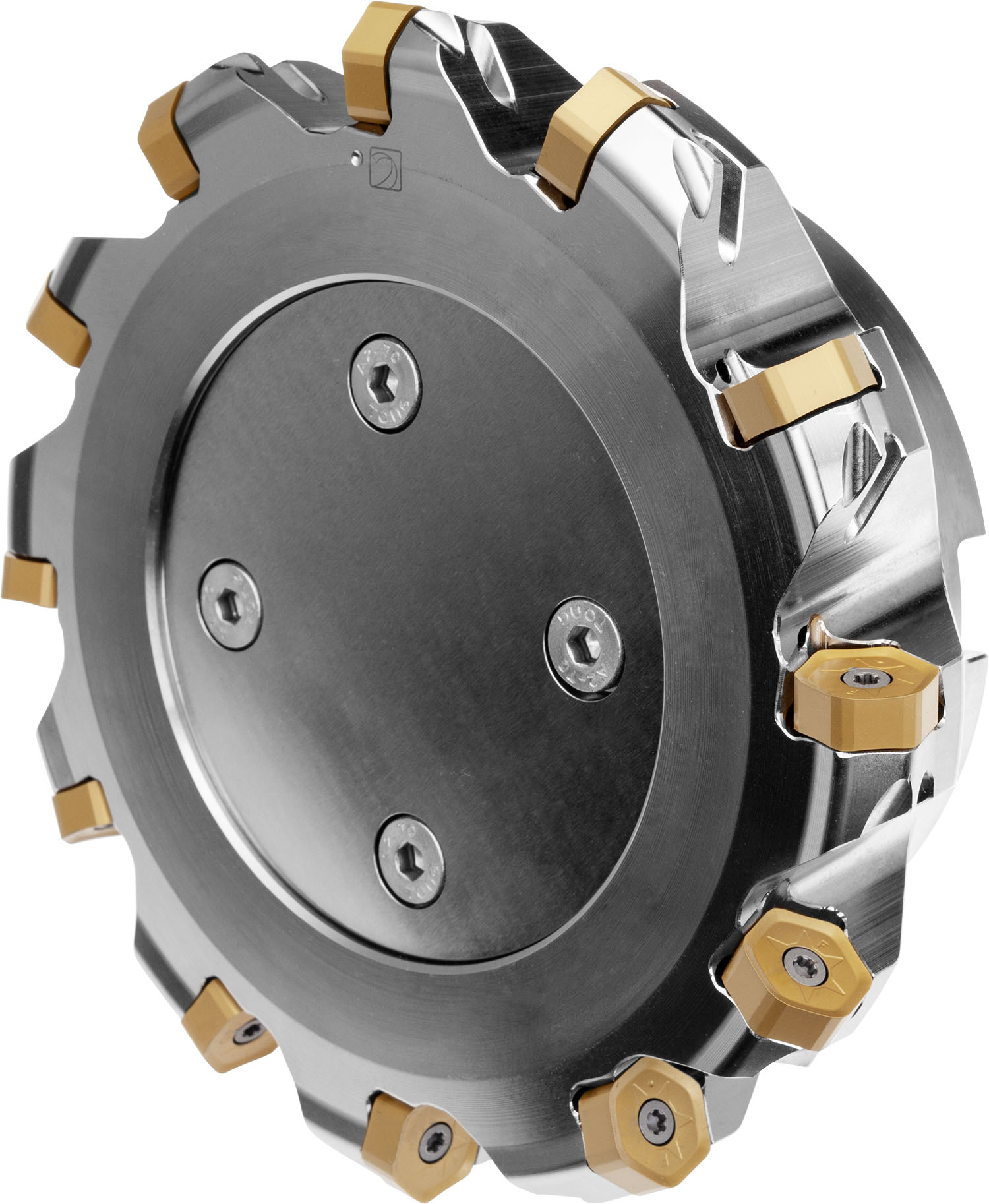

Face mill with double negative geometry which utilises 14 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 10.000 to maximum 10.461'' with 45° approach angle and 2.500'' connection bore according to DIN 8030-C, 2.480'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 6790728 |
| Peripheral Effective Cutting Edge Count | 14 |
| Cutting Pitch Differential | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 3500 |
| Connection Bore Diameter (Inch) | 2.5" |
| Keyway Width (Inch) | 1" |
| Keyway Depth (Inch) | 0.559" |
| Diameter Bolt Circle 1 (Inch) | 4" |
| Cutting Diameter (mm) | 254 mm |
| Cutting Diameter (Inch) | 10" |
| Max Cutting Diameter (Inch) | 10.461" |
| Functional Length (Inch) | 2.48" |
