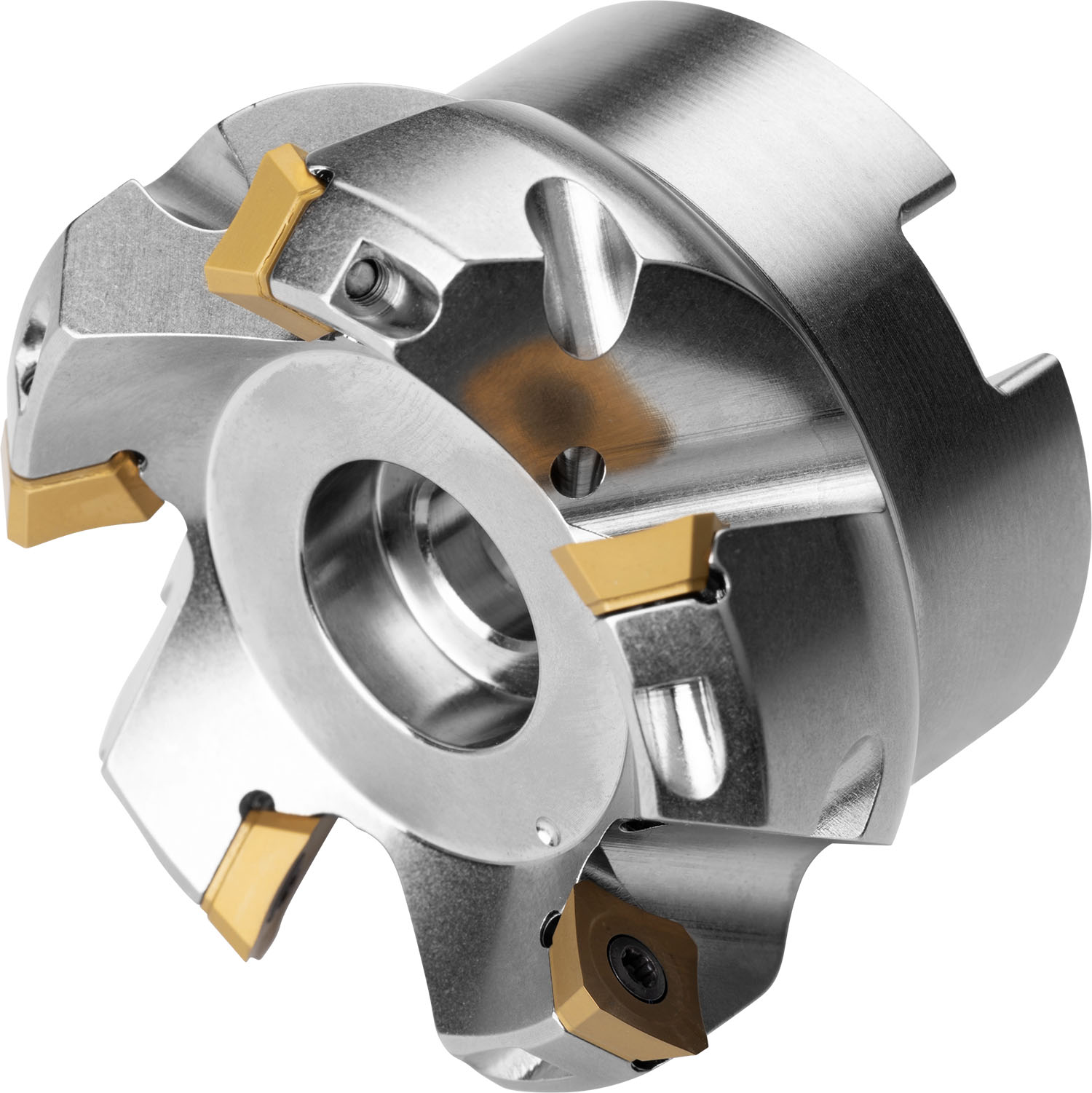

Face mill with positve/negative geometry which utilises 8 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 100 to maximum 110.0 mm with 45° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 4.5 mm.
Product Specifications
| EDP Number | 6761669 |
| Peripheral Effective Cutting Edge Count | 8 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 8 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 20 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 11000 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Counterbore Diameter Connection Bore (mm) | 45 mm |
| Keyway Width (mm) | 14.4 mm |
| Keyway Depth (mm) | 8 mm |
| Cutting Diameter (mm) | 100 mm |
| Max Cutting Diameter (mm) | 110 mm |
| Cutting Diameter (Inch) | 3.937" |
| Functional Length (mm) | 50 mm |
