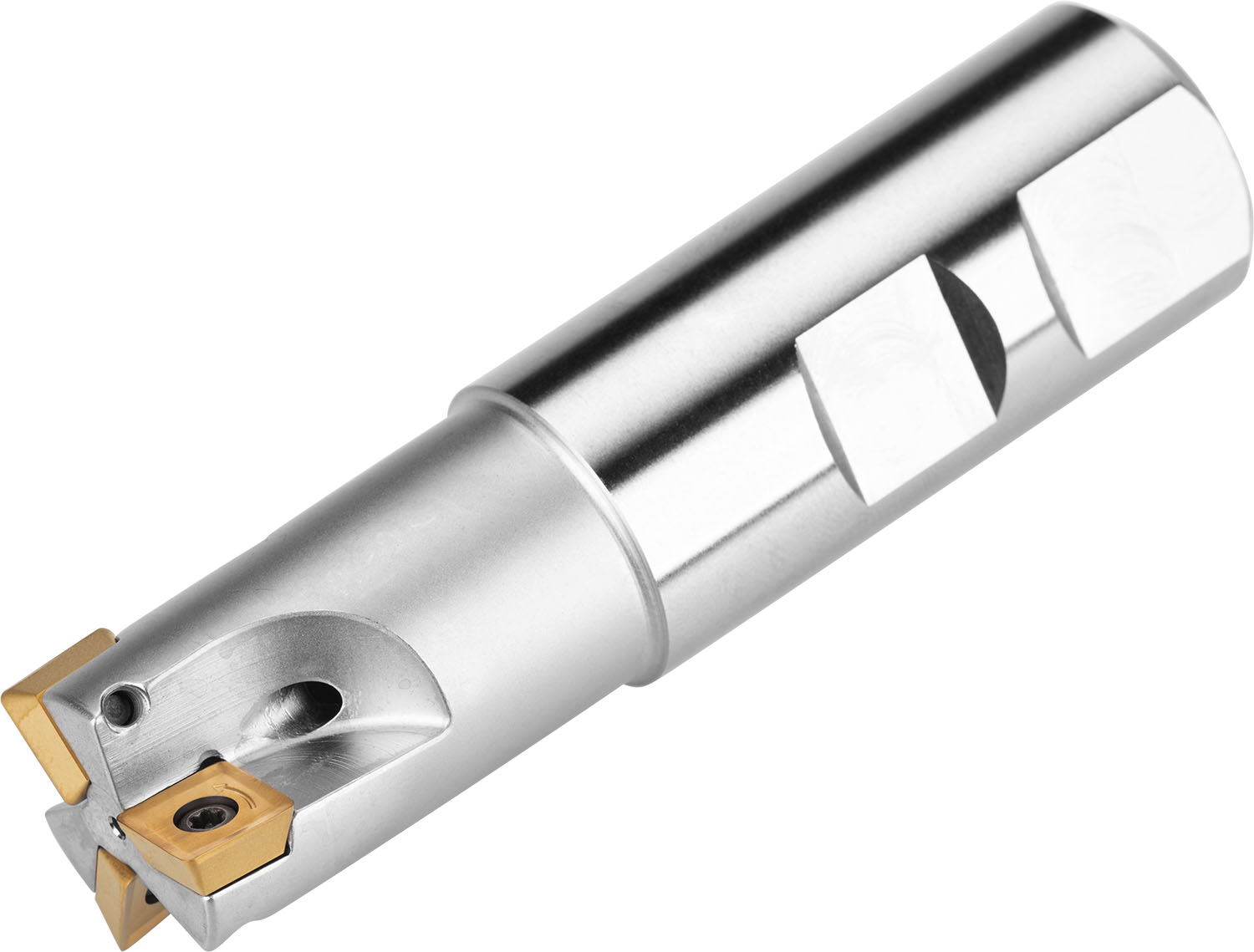

Shoulder mill with positve/negative geometry which utilises 3 off SOMT 09T3.. single-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' Weldon shank according to DIN 1835B, 3.780'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''.
Product Specifications
| EDP Number | 6789775 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 6 |
| Radial Rake Angle | -12 |
| Max Rotational Speed | 21300 |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.28 mm |
