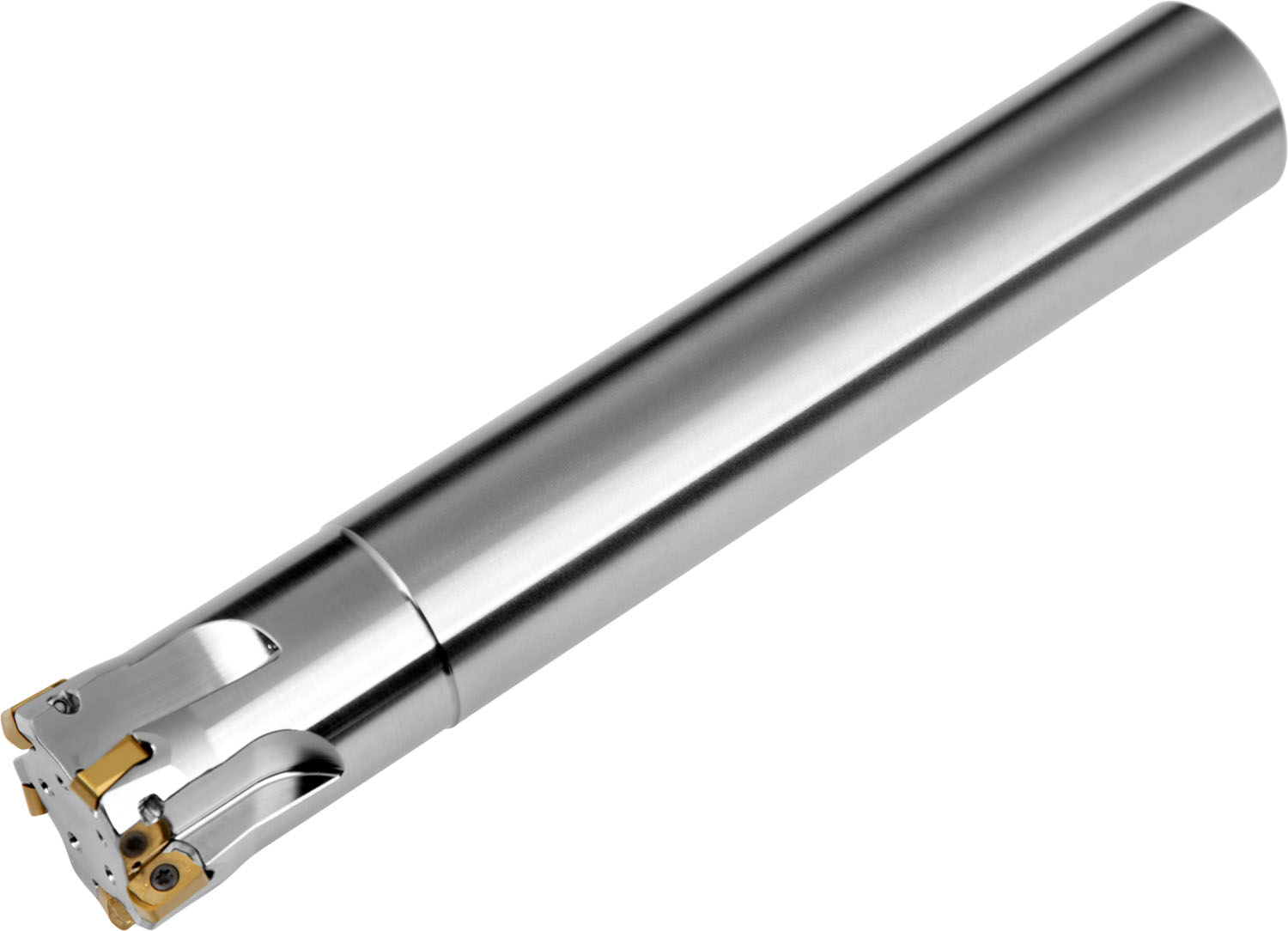

High feed cutter with double negative geometry which utilises 4 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.00'' with 20° approach angle and 1.00'' parallel shank according to DIN 1835A, 3.937'' functional and 7.087'' overall length, through coolant and differential pitch for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''.
Product Specifications
| EDP Number | 7455294 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 24600 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 18.8 mm |
| Cutting Diameter (Inch) | 0.74" |
| Max Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 3.937 mm |
