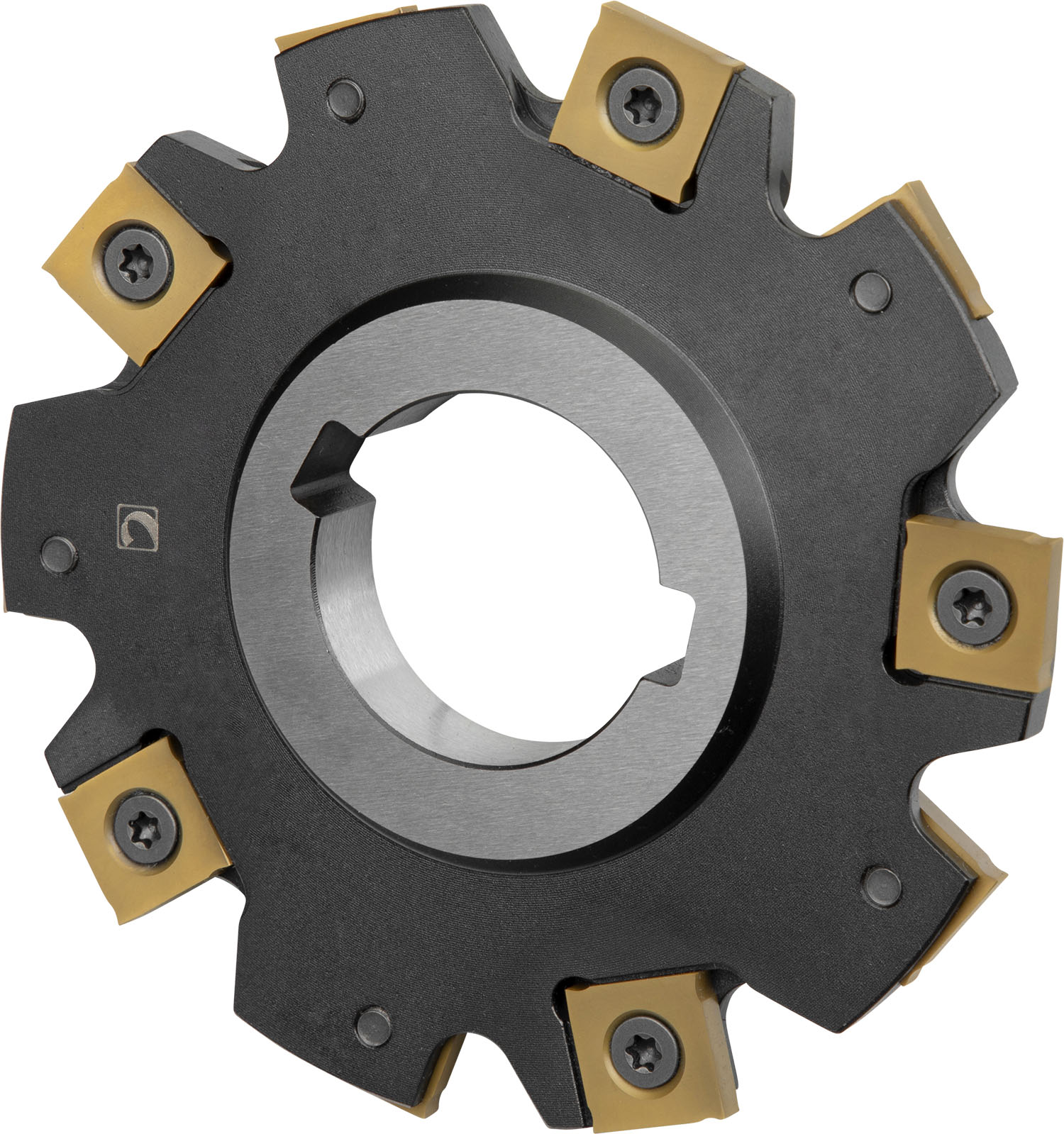

Disc mill with positve/negative geometry which utilises 10 off SNHQ 1207.. double-sided inserts, cutting diameter 100 mm with 90° approach angle and 32 mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 12 mm.
Product Specifications
| EDP Number | 6758451 |
| Peripheral Effective Cutting Edge Count | 10 |
| Insert Index Count | 10 |
| Cutting width (mm) | 12 mm |
| Max Cutting Depth (mm) | 24 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 7500 |
| Connection Bore Diameter (mm) | 32 mm |
| Hub Diameter (mm) | 48 mm |
| Cutting Diameter (mm) | 100 mm |
| Cutting Diameter (Inch) | 3.937" |
| Number of Peripheral Edges in The Tool | 10 |
