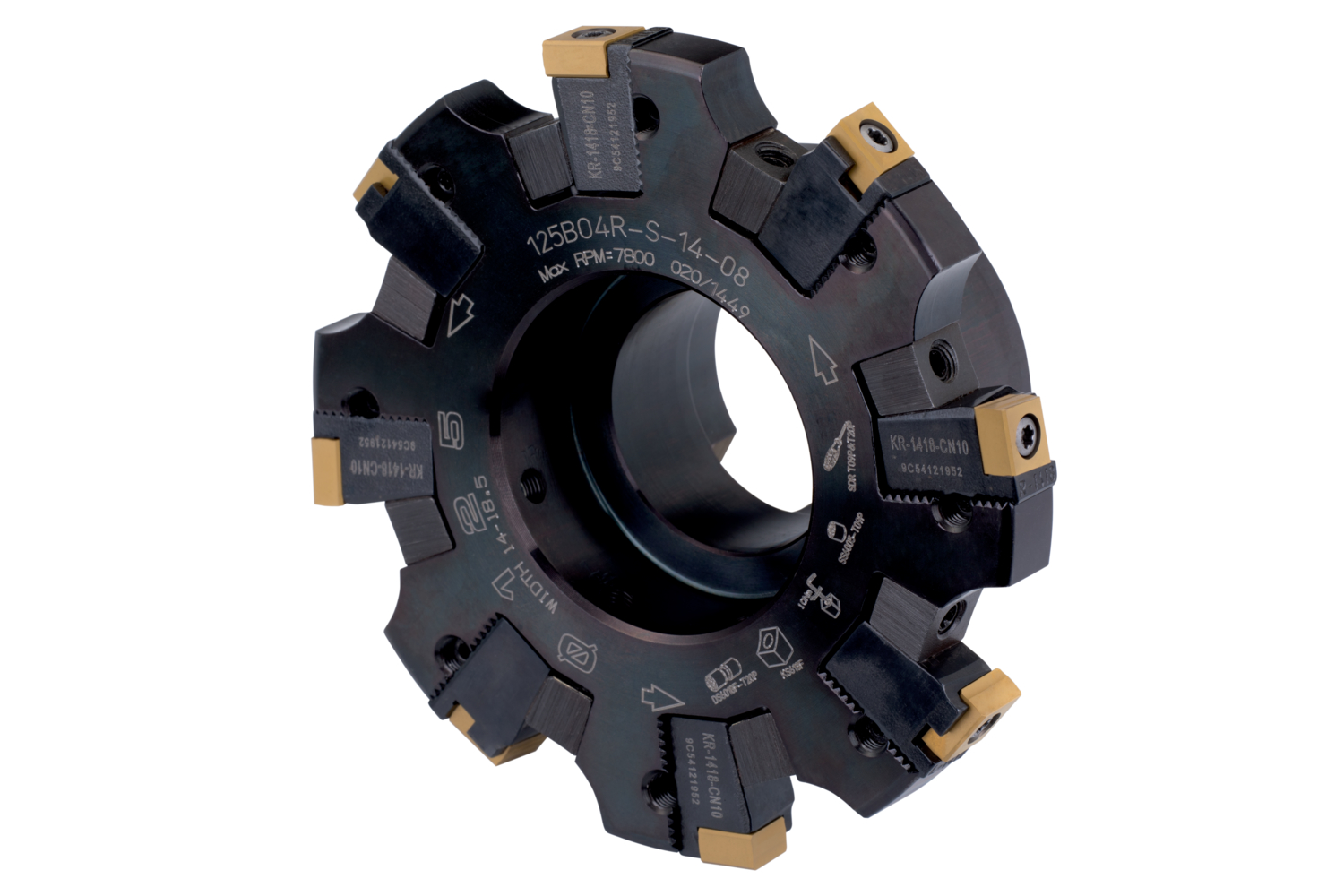

Disc mill with positve/negative geometry which utilises 8 off CNHQ 1005.. double-sided inserts, cutting diameter 125 mm with 90° approach angle and 40 mm connection bore according to DIN 8030-B, 50 mm protrusion length for deep slot milling with a width of cut of 14,0 ÷ 18,5 mm.
Product Specifications
| EDP Number | 6760161 |
| Face Effective Cutting Edge Count | 4 |
| Peripheral Effective Cutting Edge Count | 8 |
| Insert Index Count | 8 |
| Max Cutting Depth (mm) | 25 mm |
| Axial Rake Angle | 4 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 7800 |
| Connection Bore Diameter (mm) | 40 mm |
| Hub Diameter (mm) | 70 mm |
| Cutting Diameter (mm) | 125 mm |
| Cutting Diameter (Inch) | 4.921" |
| Overall Length (mm) | 90 mm |
| Overall Length (Inch) | 3.543" |
| Number of Peripheral Edges in The Tool | 8 |
