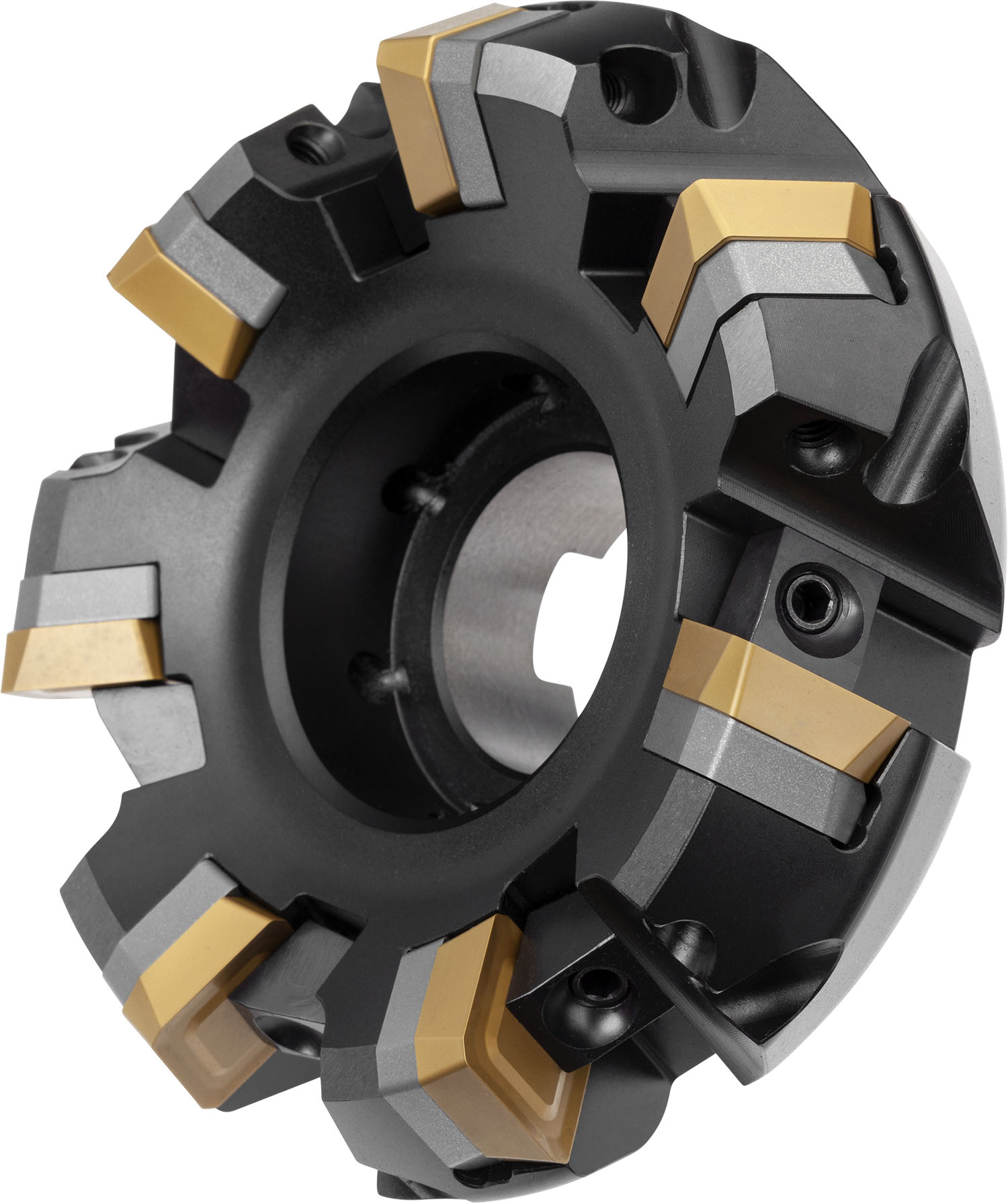

Face mill with positve/negative geometry which utilises 7 off SBKX 2207DZ.. or SBMR 2207DZ.. single-sided inserts, cutting diameter 125 to maximum 144.4 mm with 60 Degree approach angle and 40 mm connection bore according to DIN 8030-B, 63 mm protrusion length and differential pitch for face milling with a maximum depth of cut of 15.0 mm.
Product Specifications
| EDP Number | 6758303 |
| Peripheral Effective Cutting Edge Count | 7 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 7 |
| Axial Rake Angle | 9 |
| Radial Rake Angle | -9 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Counterbore Diameter Connection Bore (mm) | 56 mm |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 125 mm |
| Max Cutting Diameter (mm) | 144.4 mm |
| Cutting Diameter (Inch) | 4.921" |
| Functional Length (mm) | 63 mm |
| Clamping Type Code | System F |
| Country of origin | Czech Republic |
