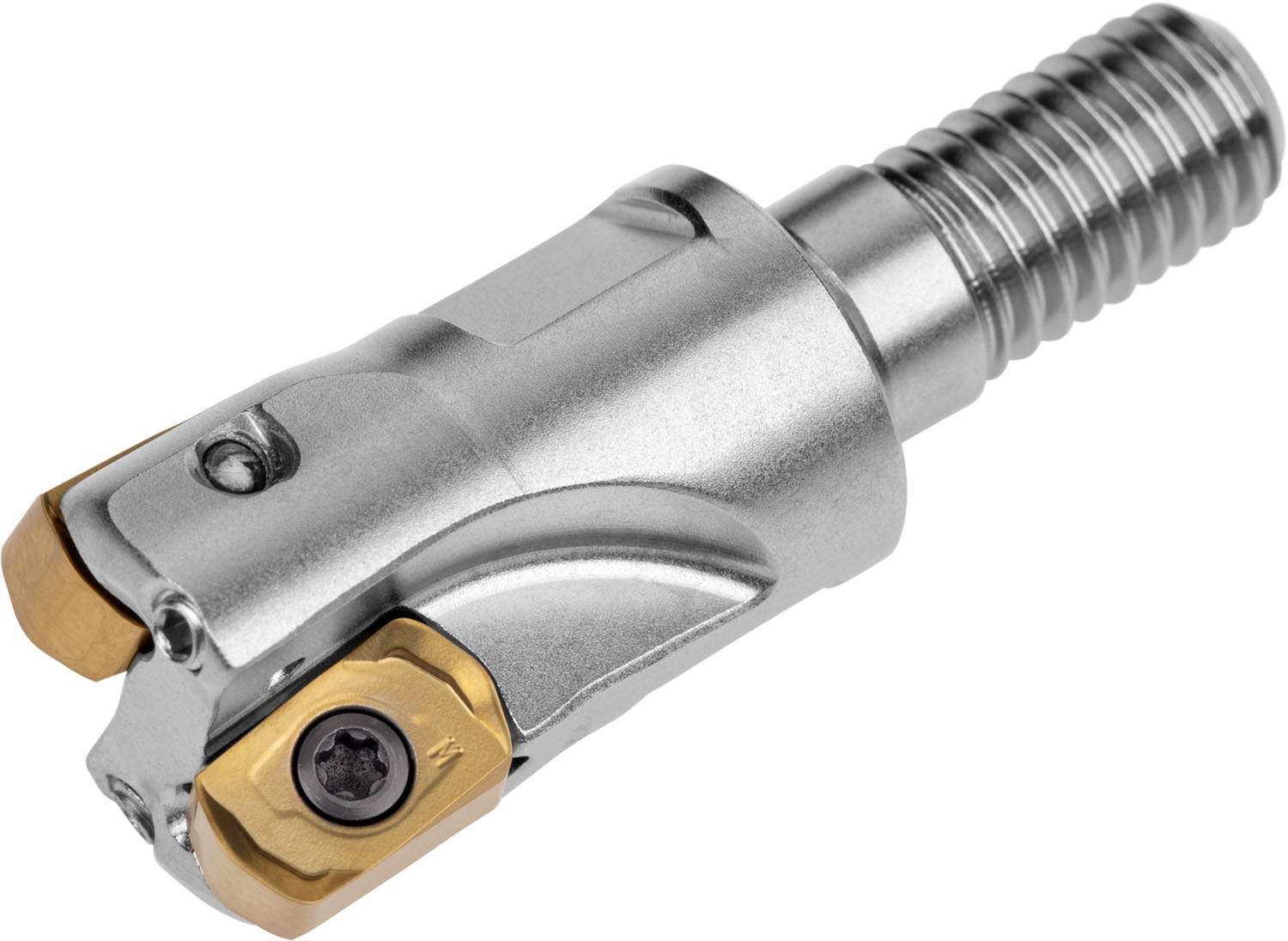

High feed cutter with double negative geometry which utilises 6 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.25'' with 20° approach angle and M16 threaded shank for standard modular tool-holders, 1.575'' protrusion length, through coolant and differential pitch for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''.
Product Specifications
| EDP Number | 7455324 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -8 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 22000 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 25.1 mm |
| Cutting Diameter (Inch) | 0.99" |
| Max Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.575" |
| Thread Diameter Size | M16 |
