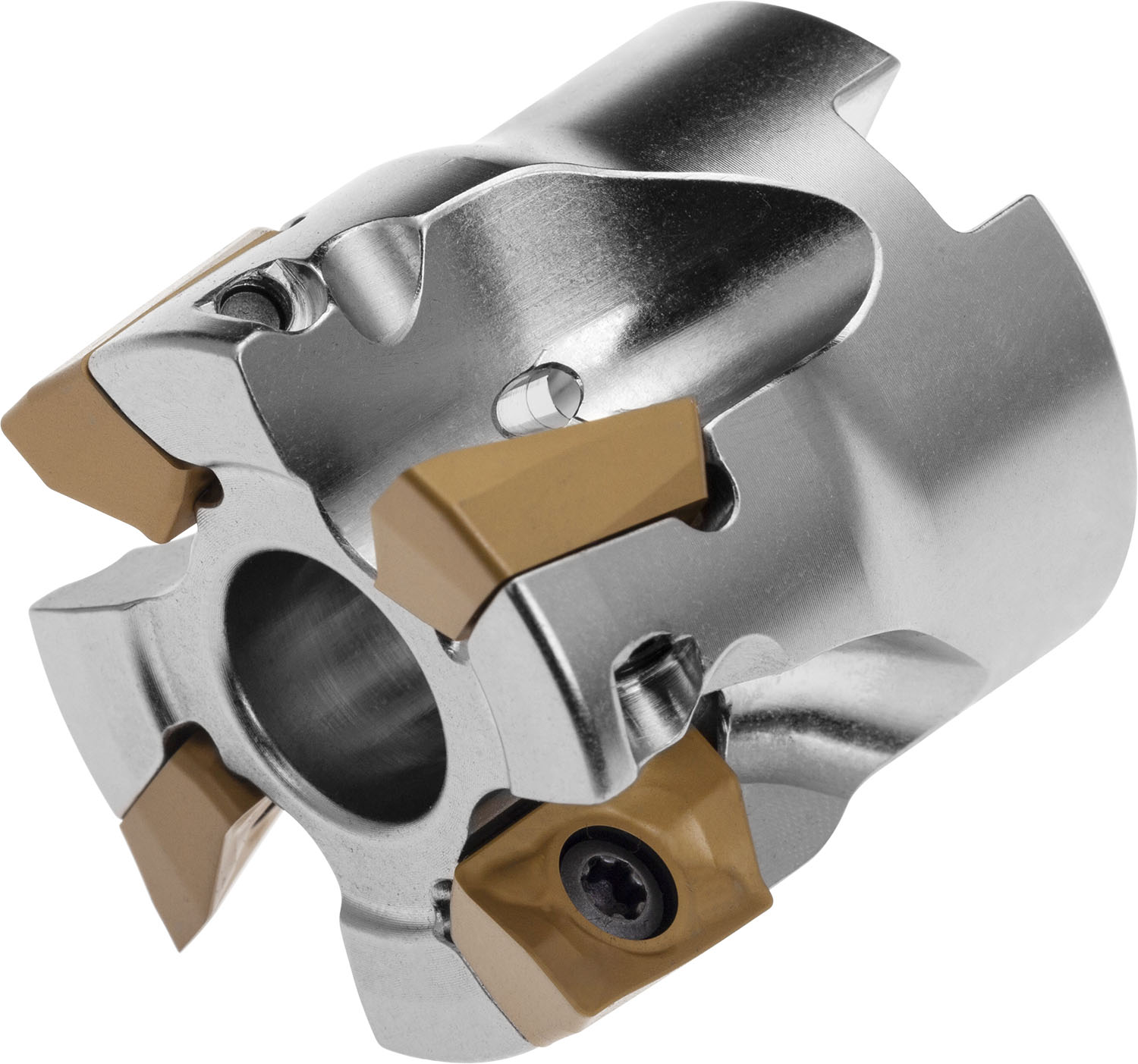

Shoulder mill with positve/negative geometry which utilises 8 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 140 mm with 90° approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6800790 |
| Peripheral Effective Cutting Edge Count | 8 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 8 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -3.8 |
| Max Rotational Speed | 7900 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Counterbore Diameter Connection Bore (mm) | 56 mm |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 140 mm |
| Cutting Diameter (Inch) | 5.512" |
| Functional Length (mm) | 63 mm |
