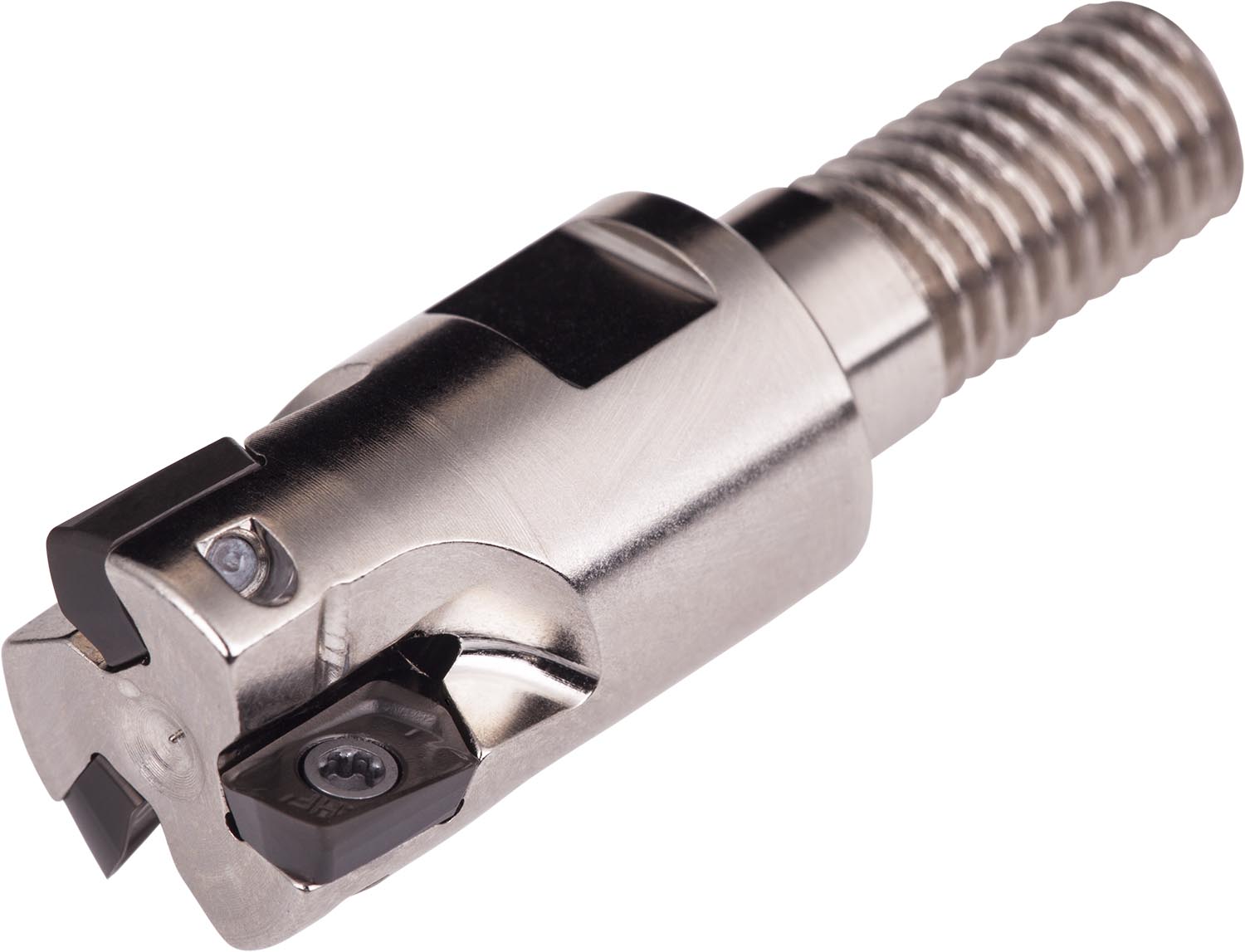

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 14 mm with 90 Degree approach angle and M8 threaded shank for standard modular tool-holders, 23 mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7607337 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -9 |
| Connection Diameter (mm) | 8.5 mm |
| Connection Diameter (Inch) | 0.335" |
| Cutting Diameter (mm) | 14 mm |
| Cutting Diameter (Inch) | 0.551" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 23 mm |
| Thread Diameter Size | M8 |
| Country of origin | Czech Republic |
