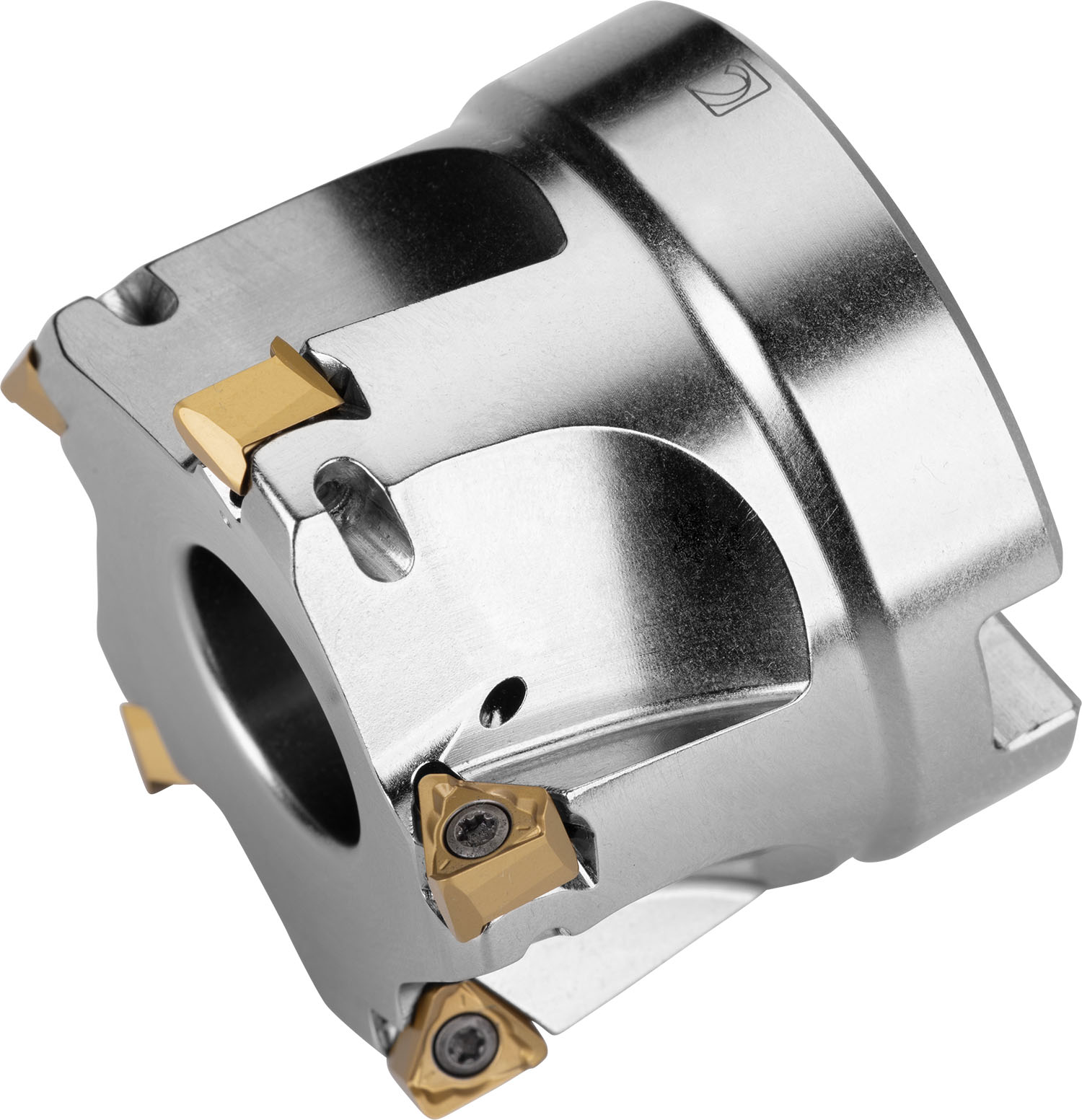

Shoulder face mill with double negative geometry which utilises 4 off TNGX 1004.. double-sided inserts, cutting diameter 1.500'' with 90° approach angle and .500'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7276848 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -15 |
| Radial Rake Angle | -11 |
| Max Rotational Speed | 19500 |
| Connection Diameter (mm) | 12.7 mm |
| Connection Diameter (Inch) | 0.5" |
| Counterbore Diameter Connection Bore (Inch) | 0.433" |
| Keyway Width (Inch) | 0.258" |
| Keyway Depth (Inch) | 0.165" |
| Cutting Diameter (mm) | 38.1 mm |
| Cutting Diameter (Inch) | 1.5" |
| Functional Length (Inch) | 1.575" |
