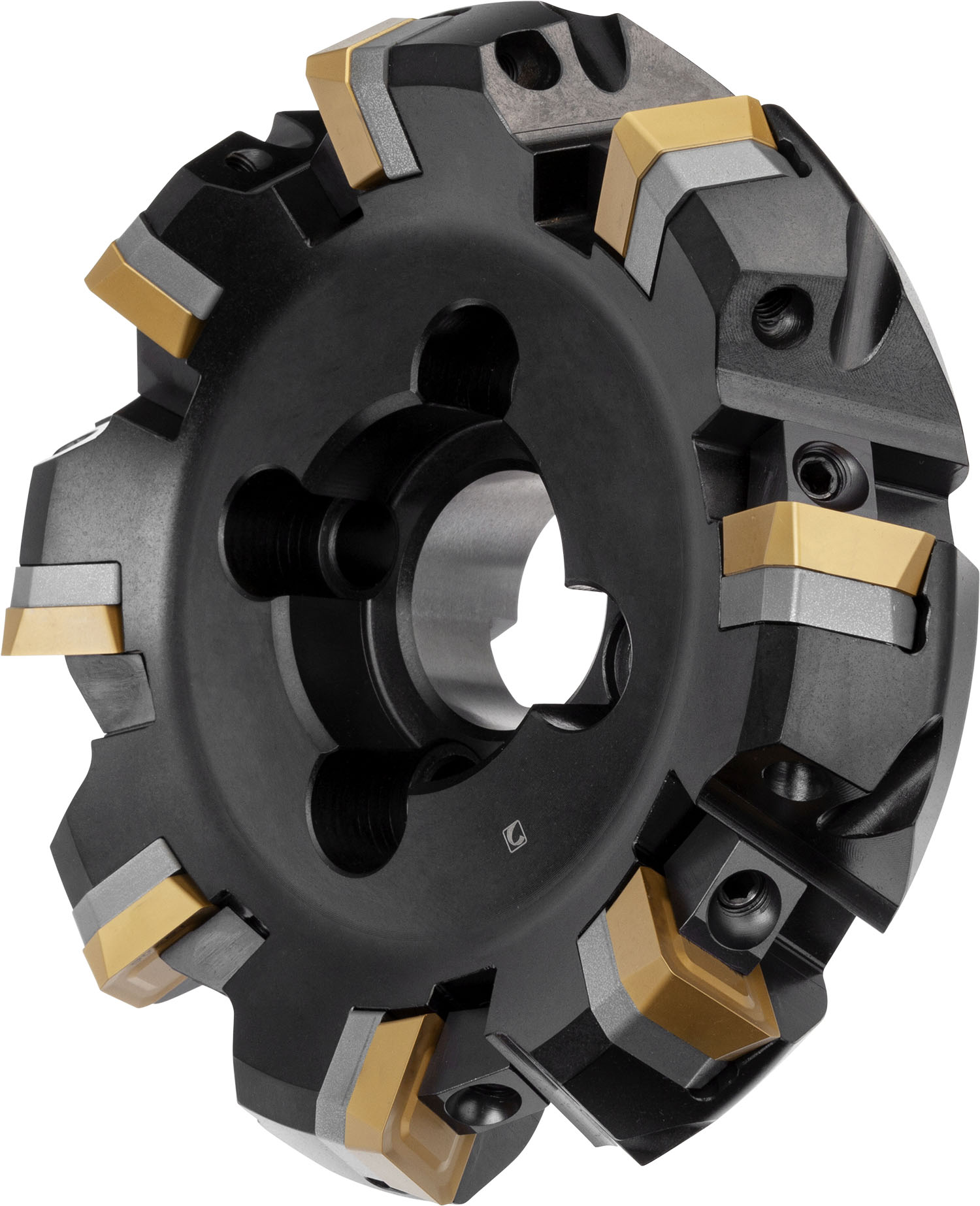

Face mill with positve/negative geometry which utilises 8 off SBKX 2207DZ.. or SBMR 2207DZ.. single-sided inserts, cutting diameter 160 to maximum 178.7 mm with 60° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length and differential pitch for face milling with a maximum depth of cut of 15.0 mm.
Product Specifications
| EDP Number | 6758304 |
| Peripheral Effective Cutting Edge Count | 8 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 8 |
| Axial Rake Angle | 9 |
| Radial Rake Angle | -9 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 160 mm |
| Max Cutting Diameter (mm) | 178.7 mm |
| Cutting Diameter (Inch) | 6.299" |
| Functional Length (mm) | 63 mm |
| Clamping Type Code | System F |
