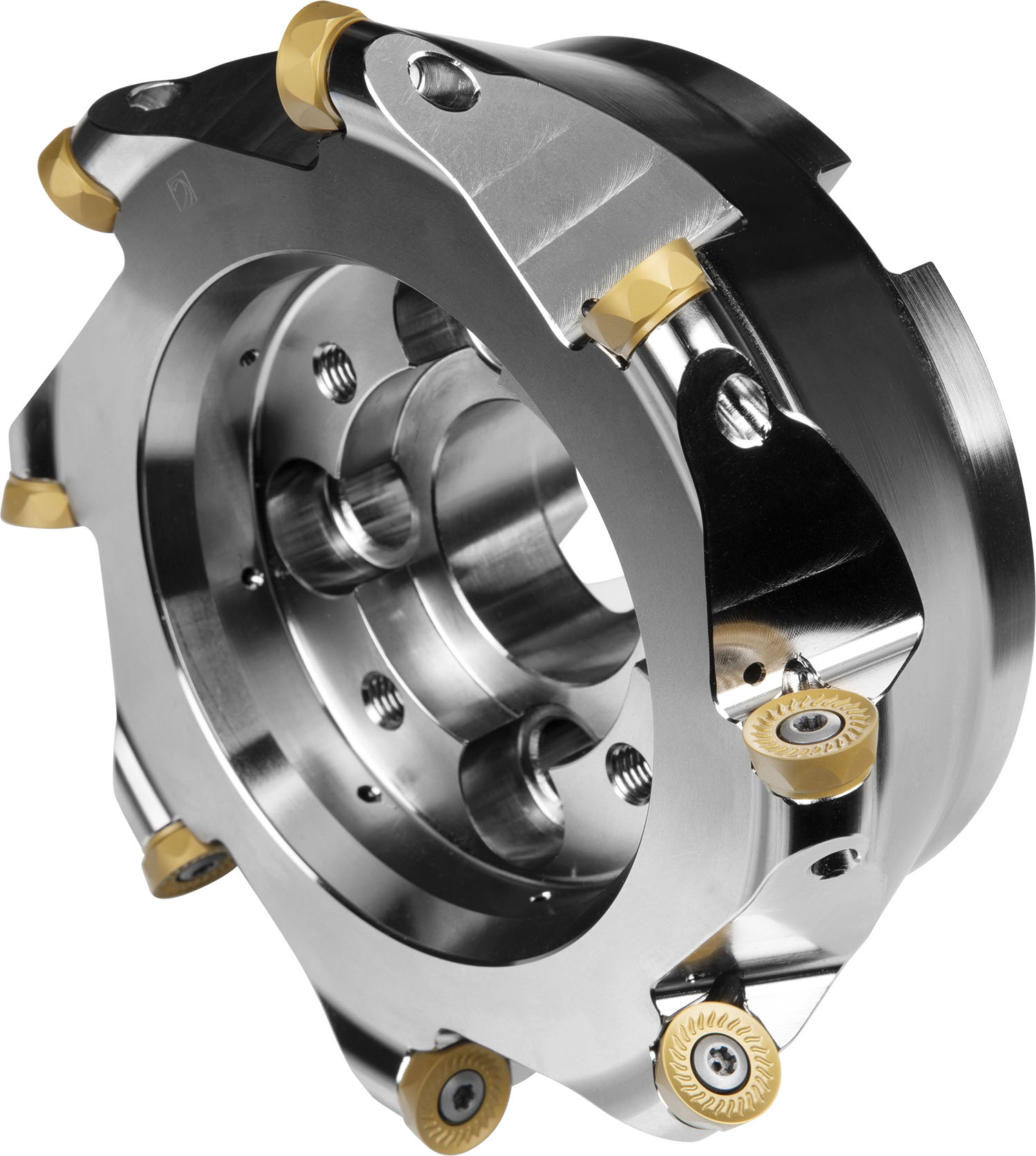

Copy face mill with double negative geometry which utilises 8 off RCMT 1606MO.. single-sided inserts, cutting diameter 160 mm with 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 8.0 mm.
Product Specifications
| EDP Number | 7155923 |
| Peripheral Effective Cutting Edge Count | 8 |
| Insert Index Count | 8 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -0.9 |
| Max Rotational Speed | 5400 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 144 mm |
| Max Cutting Diameter (mm) | 160 mm |
| Cutting Diameter (Inch) | 5.669" |
| Functional Length (mm) | 63 mm |
