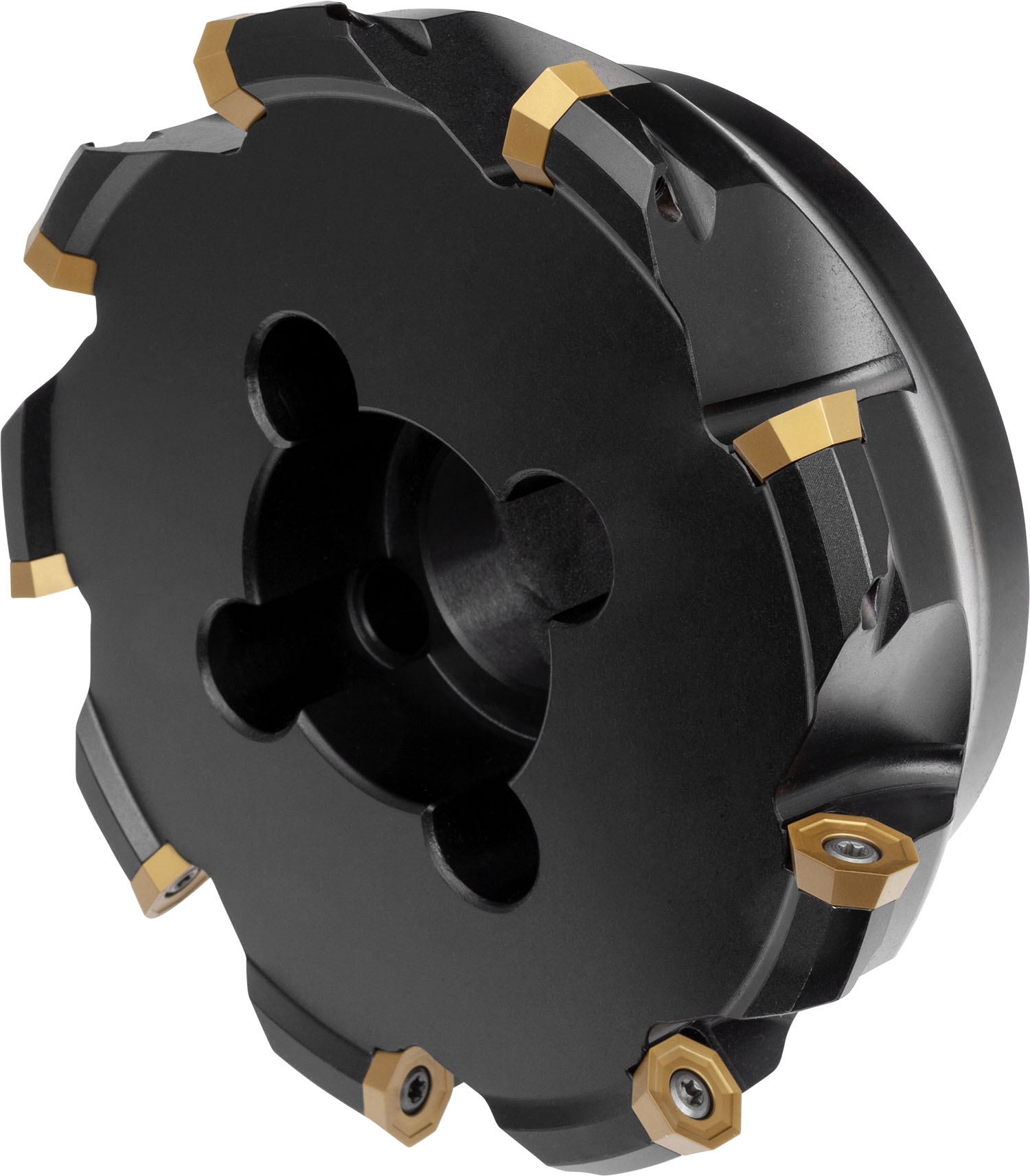

Face mill with positve/negative geometry which utilises 9 off OD.. 0605ZZ.. or RP.. 1505MO.. single-sided inserts, cutting diameter 160 to maximum 169.5 mm with 45° approach angle and 40 mm connection bore according to DIN 8030-C, 63 mm protrusion length and differential pitch for face milling and chamfering with a maximum depth of cut of 3.1 (8.6) mm.
Product Specifications
| EDP Number | 6756820 |
| Peripheral Effective Cutting Edge Count | 9 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 9 |
| Axial Rake Angle | 5 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 5500 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Counterbore Diameter Connection Bore (mm) | 56 mm |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 160 mm |
| Max Cutting Diameter (mm) | 169.5 mm |
| Cutting Diameter (Inch) | 6.299" |
| Functional Length (mm) | 63 mm |
