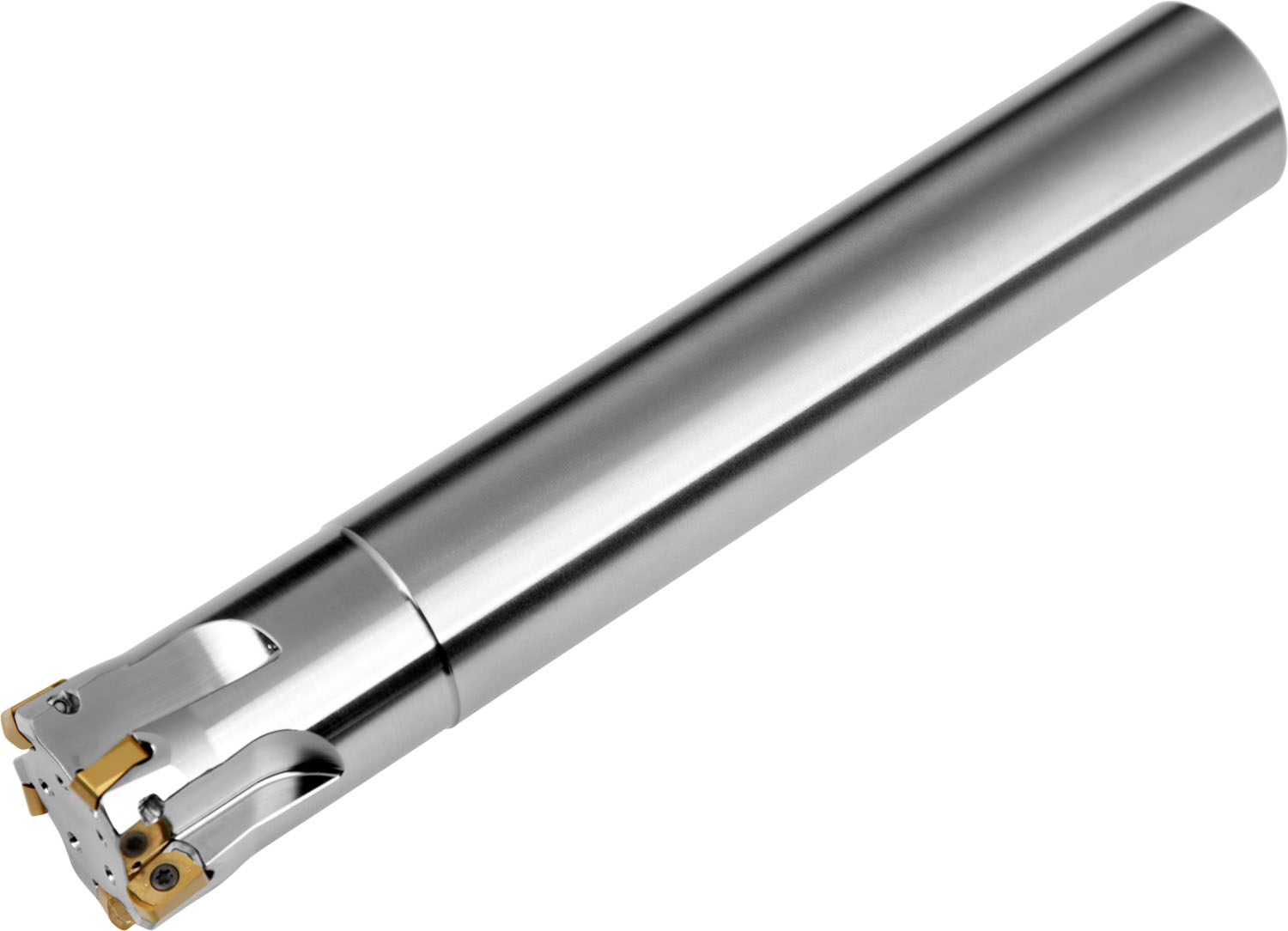

High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 16 mm with 20° approach angle and 16 mm parallel shank according to DIN 1835A, 30 mm functional and 100 mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm.
Product Specifications
| EDP Number | 7259577 |
| Peripheral Effective Cutting Edge Count | 2 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -12 |
| Max Rotational Speed | 31100 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 9.4 mm |
| Max Cutting Diameter (mm) | 16 mm |
| Cutting Diameter (Inch) | 0.37" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 30 mm |
