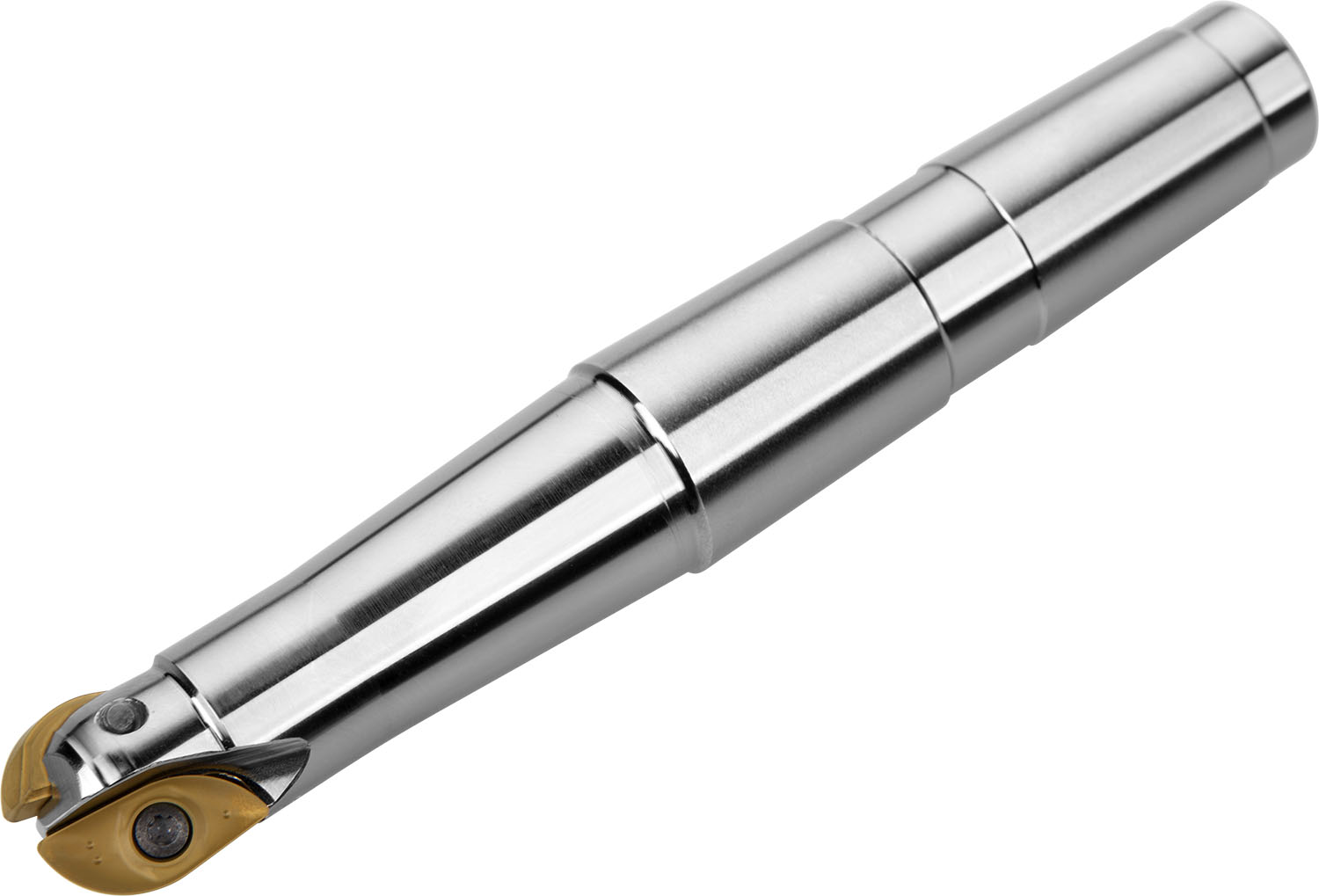

Pramet 16L2R060E02-SZP16 | 16 mm Diameter x 4.882" OAL Indexable Ball Nose End Mill

$370.00 $311.69
(You save $58.31)
Brand:
Pramet
interval quantity:
1
SKU:
23143864
UPC:
Weight:
0.41 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Copy end mill with double negative geometry which utilises 2 off ZP 16.. single-sided inserts, cutting diameter 16 mm with MT 2 morse taper shank according to DIN 228-1A, 124 mm overall length for copy milling with a maximum depth of cut of 14,4 mm.

Product Specifications
EDP Number6761651
Peripheral Effective Cutting Edge Count2
Insert Index Count2
Axial Rake Angle-10
Radial Rake Angle0
Maximum Ramping Angle14.4
Max Rotational Speed20000
Connection Size Code Machine Side2
Max Cutting Diameter (mm)16 mm
Overall Length (mm)
Overall Length (Inch)
Max Usable Length (mm)42.2 mm
Functional Length (mm)60 mm
Country of originCzech Republic
