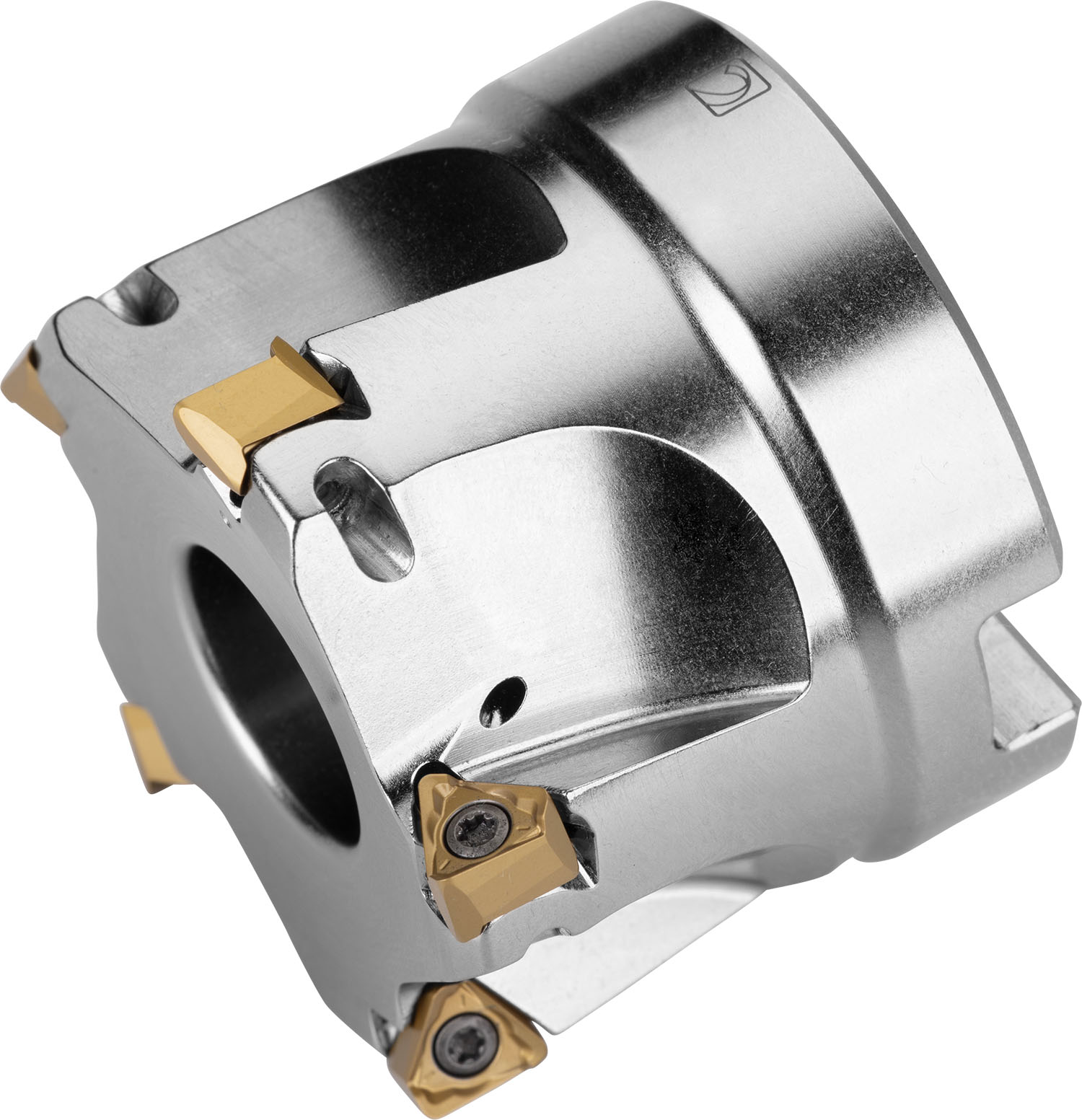

Shoulder face mill with double negative geometry which utilises 7 off TNGX 1004.. double-sided inserts, cutting diameter 2.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7276921 |
| Peripheral Effective Cutting Edge Count | 7 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -15 |
| Radial Rake Angle | -11 |
| Max Rotational Speed | 17400 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 50.8 mm |
| Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 1.575" |
