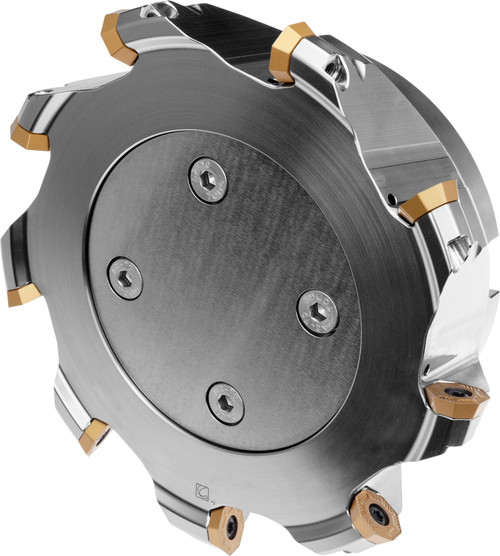

Face mill with double positive geometry which utilises 14 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 200 to maximum 209.9 mm with 43 Degree approach angle and 60 mm connection bore according to DIN 8030-C, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9) mm.
Product Specifications
| EDP Number | 6931706 |
| Peripheral Effective Cutting Edge Count | 14 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 14 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | 1 |
| Max Rotational Speed | 5300 |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Keyway Width (mm) | 25.7 mm |
| Keyway Depth (mm) | 14 mm |
| Cutting Diameter (mm) | 200 mm |
| Max Cutting Diameter (mm) | 209.9 mm |
| Cutting Diameter (Inch) | 7.874" |
| Functional Length (mm) | 63 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
