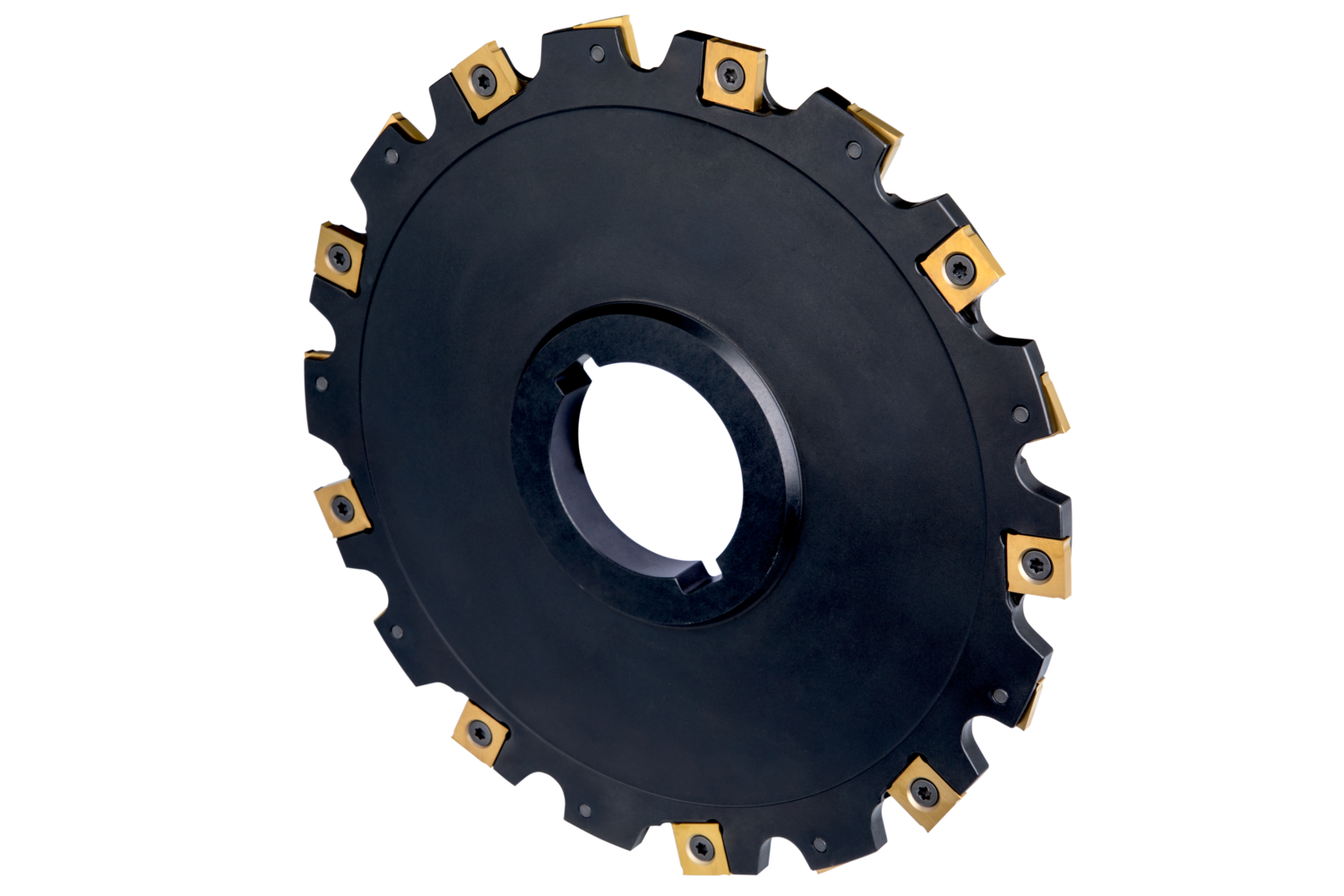

Disc mill with positve/negative geometry which utilises 18 off SNHQ 1204.. double-sided inserts, cutting diameter 200 mm with 90° approach angle and 50 mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 8 mm.
Product Specifications
| EDP Number | 6758454 |
| Peripheral Effective Cutting Edge Count | 18 |
| Insert Index Count | 18 |
| Cutting width (mm) | 8 mm |
| Max Cutting Depth (mm) | 62 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 5300 |
| Connection Bore Diameter (mm) | 50 mm |
| Hub Diameter (mm) | 72 mm |
| Cutting Diameter (mm) | 200 mm |
| Cutting Diameter (Inch) | 7.874" |
| Number of Peripheral Edges in The Tool | 18 |
