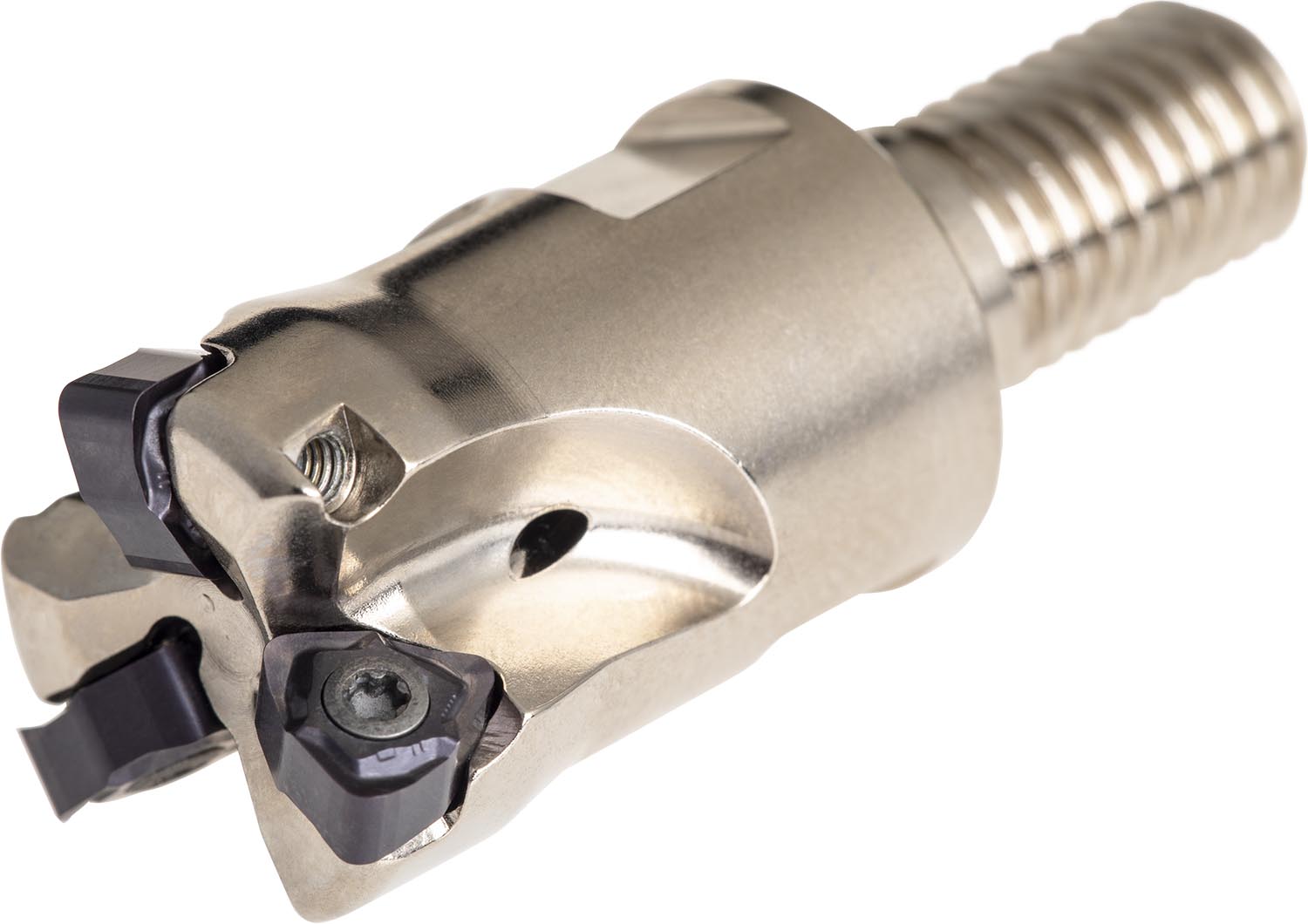

Copy face mill with double negative geometry which utilises 3 off WNHX 0403.. double-sided inserts, cutting diameter 20 mm with 93° approach angle and M10 threaded shank for standard modular tool-holders, 30 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm.
Product Specifications
| EDP Number | 7636664 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -8 |
| Radial Rake Angle | -12 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.787" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 30 mm |
| Thread Diameter Size | M10 |
