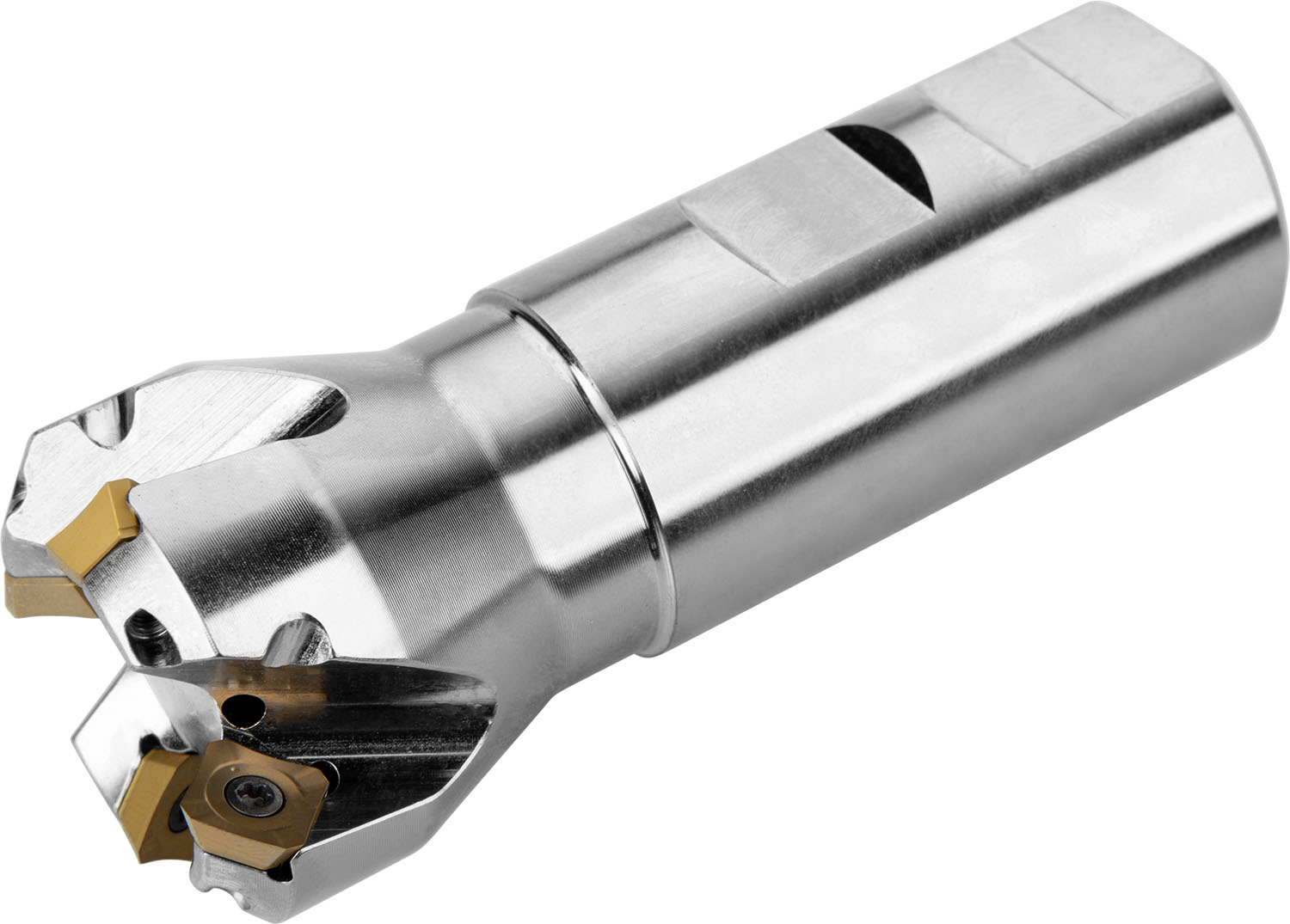

High feed cutter with positve/negative geometry which utilises 3 off ZDCW 0703.. single-sided inserts, cutting diameter 20 mm with 20,0 mm parallel shank according to DIN 1835A, 120 mm overall length, through coolant for face milling.
Product Specifications
| EDP Number | 6760249 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 42400 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Cutting Diameter (mm) | 10 mm |
| Max Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.394" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 40 mm |
