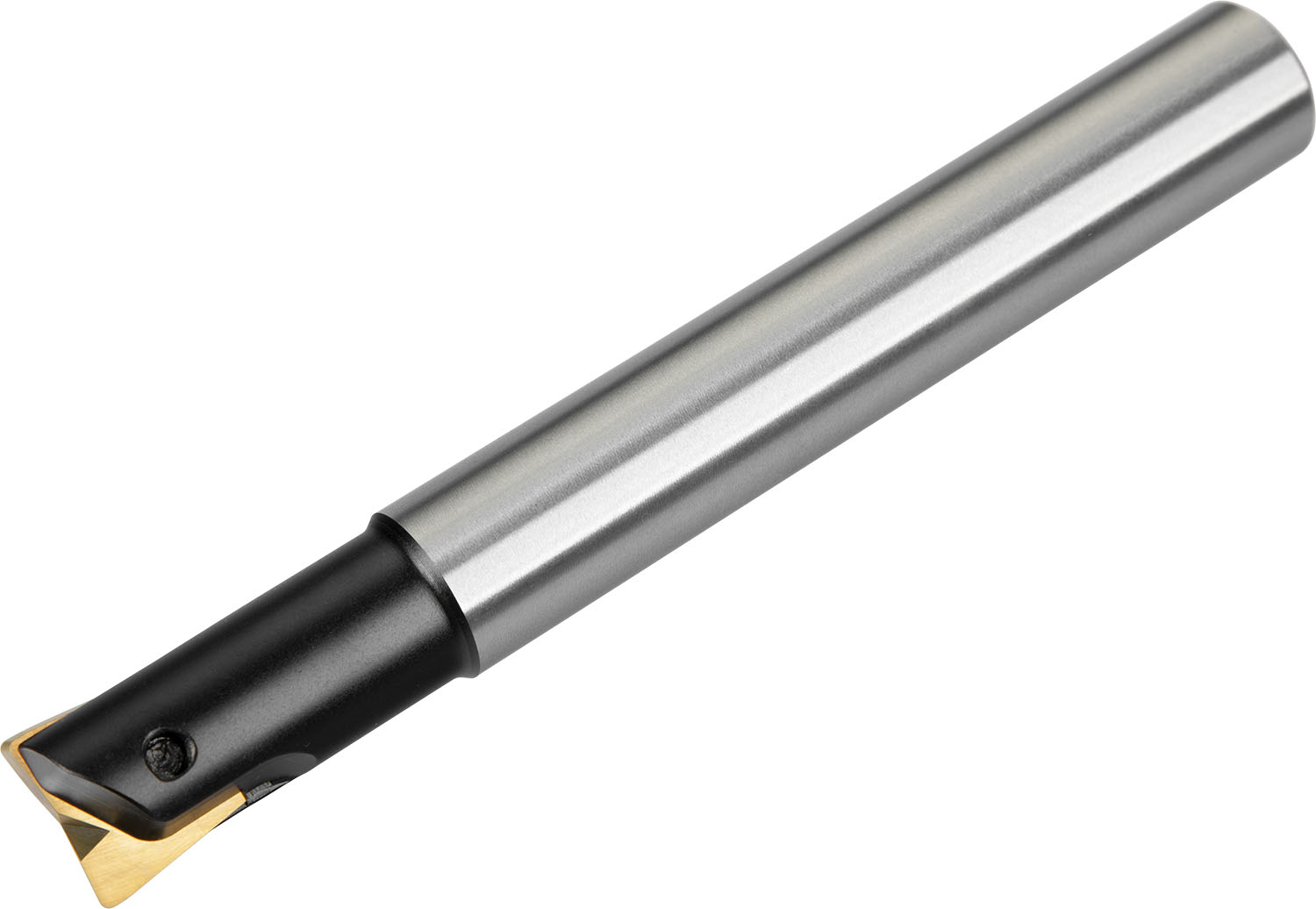

Copy end mill which utilises 1 off LC 20-KP or LC 20-KPF single-sided insert, cutting diameter 20 mm with 20 mm parallel shank according to DIN 1835A, 45 mm functional and 160 mm overall length for copy milling with a maximum depth of cut of 1.0-3.0 mm.
Product Specifications
| EDP Number | 6756699 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Max Rotational Speed | 16000 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.787" |
| Body Diameter (mm) | 18 mm |
| Body Diameter (Inch) | 0.709" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 45 mm |
| Country of origin | Czech Republic |
