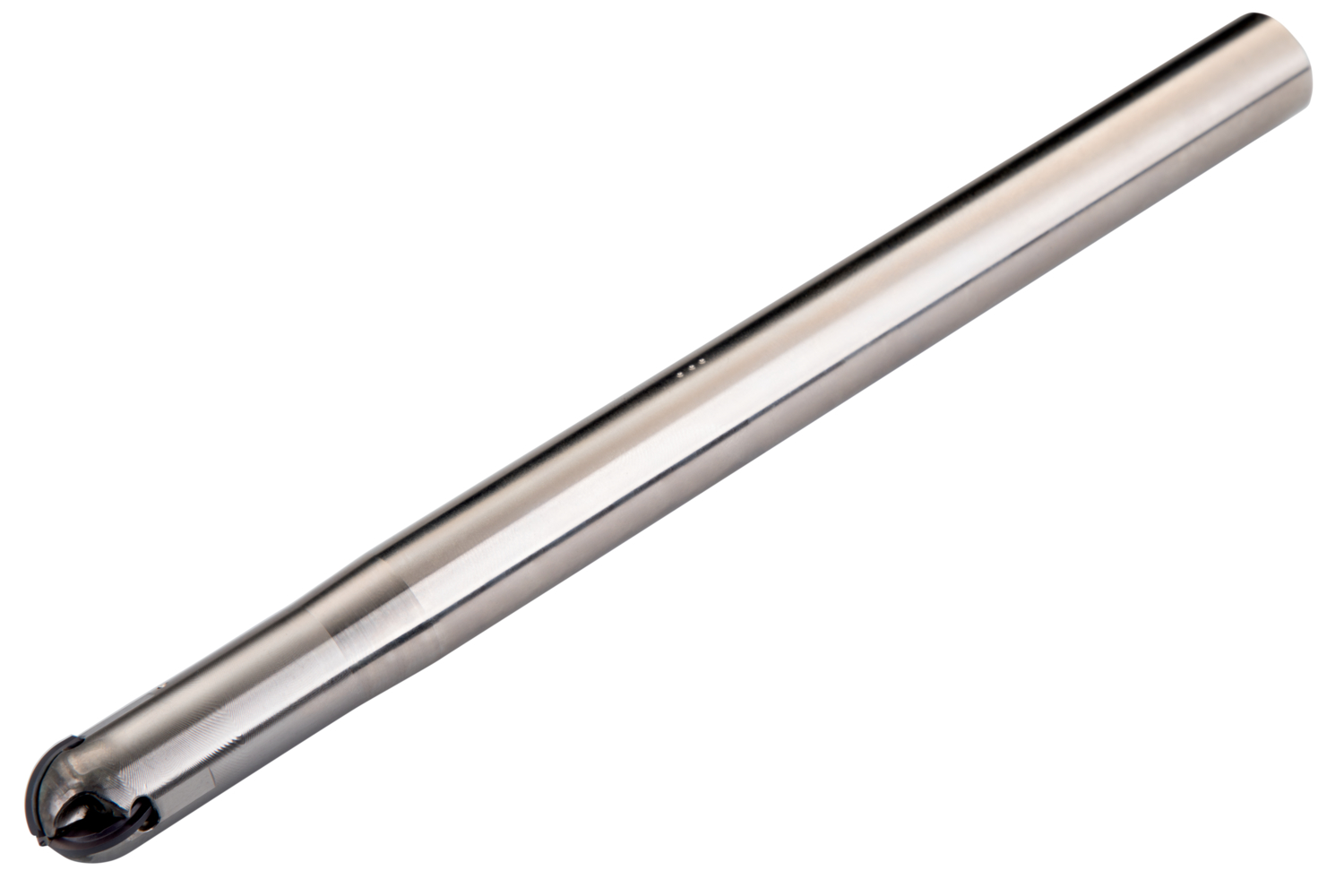

Copy end mill with double negative geometry which utilises 3 off XP 20.. single-sided inserts, cutting diameter 20 mm with 20 mm parallel shank according to DIN 1835A, 50 mm functional and 200 mm overall length for copy milling with a maximum depth of cut of 10 mm.
Product Specifications
| EDP Number | 6761728 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Maximum Depth of Cut (mm) | 10 mm |
| Axial Rake Angle | -5 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 20000 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Max Cutting Diameter (mm) | 20 mm |
| Overall Length (mm) | 282 mm |
| Overall Length (Inch) | 11.102" |
| Usable Length (mm) | 50 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
